Why Is Air Circuit Breaker Essential for Modern Electrical Protection?
An Air Circuit Breaker plays a critical role in protecting electrical systems from overloads, short circuits, and operational failures. From factories and commercial buildings to renewable energy systems and data centers, these breakers ensure stable power distribution and improve operational safety.
This comprehensive guide explains how Air Circuit Breakers work, their key advantages, installation considerations, maintenance practices, common buyer concerns, and how to select the right solution for your application. Whether you are an engineer, procurement manager, contractor, or facility owner, this article will help you make informed decisions and avoid costly mistakes.
Table of Contents
- 1. What Is an Air Circuit Breaker?
- 2. How Does an Air Circuit Breaker Work?
- 3. Why Are Air Circuit Breakers Important?
- 4. Main Components of an Air Circuit Breaker
- 5. Key Advantages of Air Circuit Breakers
- 6. Common Applications
- 7. Air Circuit Breaker vs MCCB
- 8. How to Choose the Right Air Circuit Breaker
- 9. Installation Best Practices
- 10. Maintenance and Inspection Tips
- 11. Common Problems and Solutions
- 12. Safety Standards and Certifications
- 13. Industry Trends and Innovations
- 14. Why Quality Matters
- 15. Frequently Asked Questions
- 16. Conclusion
1. What Is an Air Circuit Breaker?

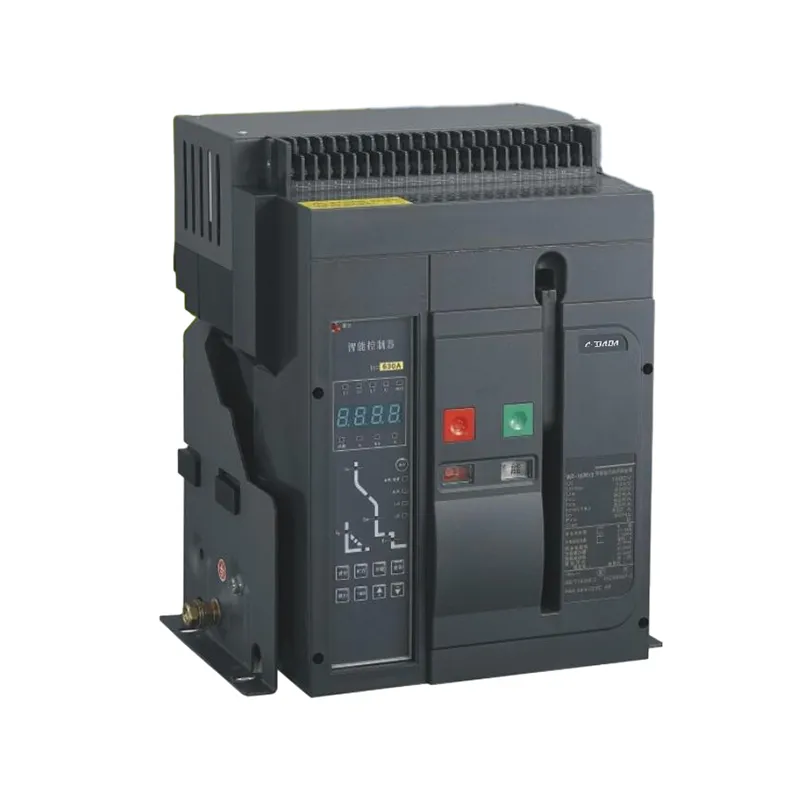

An Air Circuit Breaker (ACB) is a protective electrical device designed to interrupt electrical current flow during overloads, short circuits, or electrical faults. Unlike oil-based or vacuum breakers, it uses air as the arc extinguishing medium.
Air Circuit Breakers are commonly installed in low-voltage power distribution systems with ratings typically above 800A and up to 6300A. They are essential for industrial plants, power stations, commercial buildings, and large-scale infrastructure projects.
The main purpose of an Air Circuit Breaker is to:
- Protect electrical equipment from damage
- Prevent fire hazards
- Ensure stable power distribution
- Minimize production downtime
- Improve operational safety
2. How Does an Air Circuit Breaker Work?
When abnormal current conditions occur, the Air Circuit Breaker automatically disconnects the electrical circuit. The breaker detects excessive current through protection relays and trips the mechanism to isolate the faulty section.
The interruption process includes:
- Fault detection
- Trip signal activation
- Contact separation
- Arc formation
- Arc extinction using air chambers
- Power isolation
The arc generated during contact separation is cooled and extinguished inside the arc chute. Modern Air Circuit Breakers use advanced arc control technology to improve safety and reduce equipment wear.
3. Why Are Air Circuit Breakers Important?
Electrical systems face constant risks from overloads, equipment failures, voltage fluctuations, and short circuits. Without adequate protection, these issues can lead to:
- Expensive equipment damage
- Unexpected shutdowns
- Electrical fires
- Production losses
- Safety hazards for workers
Air Circuit Breakers provide rapid fault isolation and system reliability. Their intelligent protection capabilities help businesses reduce operational risks and maintain continuous performance.
| Problem | Impact | ACB Solution |
|---|---|---|
| Overload | Equipment overheating | Automatic tripping |
| Short Circuit | Severe electrical damage | Instant fault interruption |
| Power Instability | System shutdown | Reliable circuit protection |
| Arc Faults | Fire risks | Arc extinguishing technology |
4. Main Components of an Air Circuit Breaker
Understanding the internal structure helps buyers evaluate product quality and long-term reliability.
- Main Contacts: Carry current during normal operation
- Arc Contacts: Manage arc generation during switching
- Arc Chute: Extinguishes electrical arcs
- Trip Unit: Detects abnormal electrical conditions
- Operating Mechanism: Opens and closes contacts
- Insulation System: Prevents leakage current
- Control Circuit: Enables intelligent monitoring
5. Key Advantages of Air Circuit Breakers
Air Circuit Breakers are preferred in large-scale power systems because of their outstanding performance and operational benefits.
High Breaking Capacity
Handles large fault currents efficiently without damaging connected systems.
Excellent Safety
Reduces risks associated with electrical fires and system failures.
Long Service Life
Durable designs support frequent switching and long operational cycles.
Easy Maintenance
Modular structures simplify inspection and replacement procedures.
6. Common Applications
Air Circuit Breakers are widely used in:
- Industrial manufacturing plants
- Commercial buildings
- Hospitals
- Data centers
- Renewable energy systems
- Marine electrical systems
- Power generation stations
- Transportation infrastructure
Their flexibility makes them suitable for both fixed and draw-out installations.
7. Air Circuit Breaker vs MCCB
| Feature | Air Circuit Breaker | MCCB |
|---|---|---|
| Current Rating | Up to 6300A | Usually below 1600A |
| Application | Main power distribution | Branch protection |
| Maintenance | Serviceable | Limited maintenance |
| Intelligence | Advanced monitoring | Basic protection |
8. How to Choose the Right Air Circuit Breaker
Selecting the correct Air Circuit Breaker is essential for operational safety and long-term reliability.
Key factors include:
- Rated current capacity
- Breaking capacity
- Voltage requirements
- Protection functions
- Installation type
- Communication capabilities
- Environmental conditions
- Compliance standards
Many buyers make the mistake of focusing only on price. However, low-quality breakers may increase maintenance costs, downtime, and operational risks over time.
9. Installation Best Practices
Proper installation improves system performance and extends equipment life.
- Ensure adequate ventilation space
- Verify cable sizing compatibility
- Check torque settings for terminals
- Test trip functions before commissioning
- Use professional electrical engineers
- Follow manufacturer specifications carefully
Incorrect installation can lead to overheating, nuisance tripping, or catastrophic failures.
10. Maintenance and Inspection Tips
Routine maintenance helps prevent unexpected system failures and ensures reliable operation.
- Inspect contacts regularly
- Clean dust and contaminants
- Test protection settings periodically
- Verify mechanical operations
- Check insulation resistance
- Monitor temperature rise
- Replace worn components immediately
Preventive maintenance reduces operational costs and extends equipment lifespan significantly.
11. Common Problems and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Frequent Tripping | Overload or incorrect settings | Adjust protection parameters |
| Overheating | Loose connections | Retighten terminals |
| Mechanical Failure | Worn mechanism | Replace damaged parts |
| Arc Damage | High fault current | Inspect arc chute condition |
12. Safety Standards and Certifications
Reliable Air Circuit Breakers should comply with internationally recognized standards such as:
- IEC 60947-2
- CE Certification
- ISO Quality Management Systems
- RoHS Compliance
Certified products provide higher reliability, consistent quality, and safer electrical performance.
13. Industry Trends and Innovations
Modern Air Circuit Breakers are becoming smarter and more energy-efficient.
Current innovations include:
- IoT-enabled monitoring systems
- Remote operation and diagnostics
- Predictive maintenance technology
- Digital protection relays
- Energy management integration
- Compact modular structures
These advancements improve system visibility and reduce maintenance costs.
14. Why Quality Matters
Electrical protection systems are critical infrastructure components. Choosing low-quality Air Circuit Breakers may result in:
- Unexpected shutdowns
- Frequent maintenance
- Reduced operational efficiency
- Safety incidents
- Higher replacement costs
High-performance products from experienced manufacturers provide better durability, stable performance, and dependable protection under demanding conditions.
Shanghai DaDa Electric Co., Ltd. has extensive experience in electrical protection technology and provides professional Air Circuit Breaker solutions for industrial and commercial applications worldwide.
15. Frequently Asked Questions
What is the lifespan of an Air Circuit Breaker?
The lifespan depends on operating conditions, maintenance quality, and switching frequency. High-quality units can operate reliably for many years with proper maintenance.
Can Air Circuit Breakers be repaired?
Yes. Many Air Circuit Breakers are designed with serviceable components that allow repairs and maintenance instead of complete replacement.
How often should maintenance be performed?
Routine inspections are generally recommended annually, although harsh environments may require more frequent servicing.
Are intelligent Air Circuit Breakers worth the investment?
Yes. Intelligent models improve system monitoring, reduce downtime, support predictive maintenance, and enhance operational efficiency.
16. Conclusion
An Air Circuit Breaker is one of the most important components in modern electrical protection systems. It safeguards equipment, protects personnel, minimizes downtime, and ensures stable power distribution across industrial and commercial facilities.
As electrical systems become more advanced and energy demands continue growing, selecting a reliable and high-performance Air Circuit Breaker becomes increasingly critical.
Whether you are upgrading an existing system or designing a new project, investing in quality electrical protection can significantly improve operational reliability and long-term cost efficiency.
Shanghai DaDa Electric Co., Ltd. provides professional electrical protection products designed for industrial, commercial, and infrastructure applications. Our experienced team is ready to help you find the ideal Air Circuit Breaker solution for your project requirements.
Contact us today to discuss your electrical protection needs and receive professional technical support.
