TSM Plastic Distribution Box

At Shanghai DADA Electric CO., LTD, a professional China factory, we design the TSM Plastic Distribution Box not just as a component—but as the first line of safety and style in your electrical system. Whether you’re an electrician, contractor, or project specifier, we know you need a box that’s easy to install, reliable over time, and visually compatible with modern interiors. That’s why we’ve engineered the TSM series with high-strength ABS, crystal-clear polycarbonate covers, and smart modular sizing—so you can select, install, and forget with confidence.

Our Recommendation: For residential apartments, villas, or office retrofits, choose the concealed (R-type) model for a clean wall finish. For workshops, basements, or quick installations, go with surface-mounted (M-type)—no cutting required.

Product Highlights

Material: High-impact, flame-retardant ABS polymer shell + transparent PC cover

Base Type: Plastic base (P) – lightweight yet durable for standard indoor use

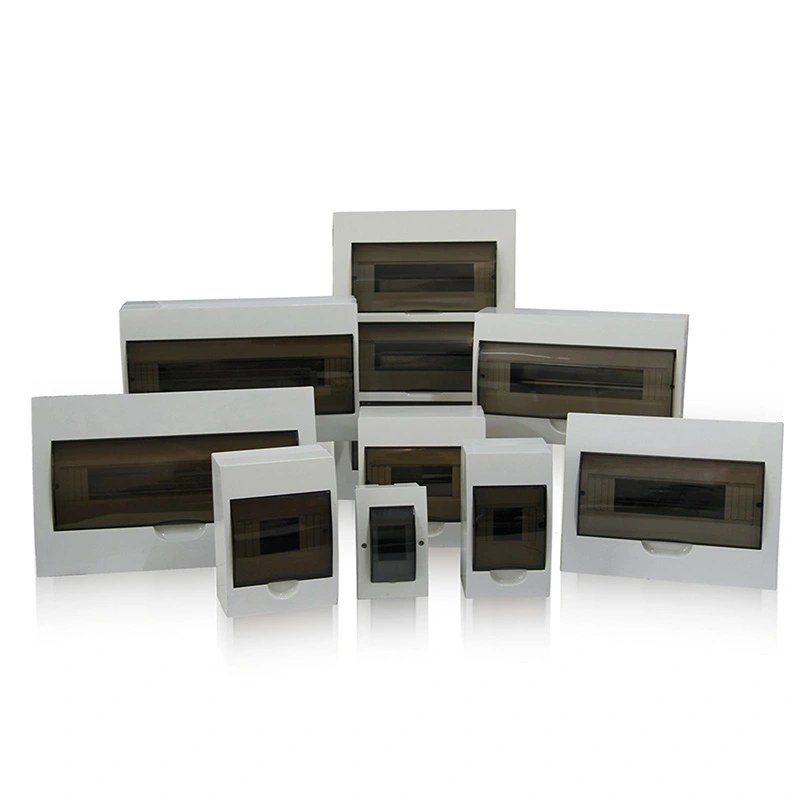

Circuit Options: 4, 6, 8, 12, 15, 18, 24, 36 poles – scalable for any load

Mounting:

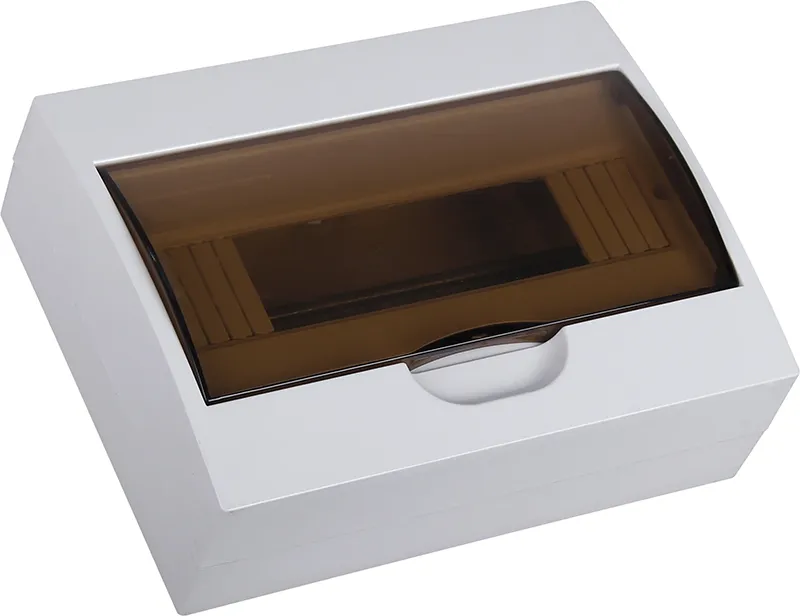

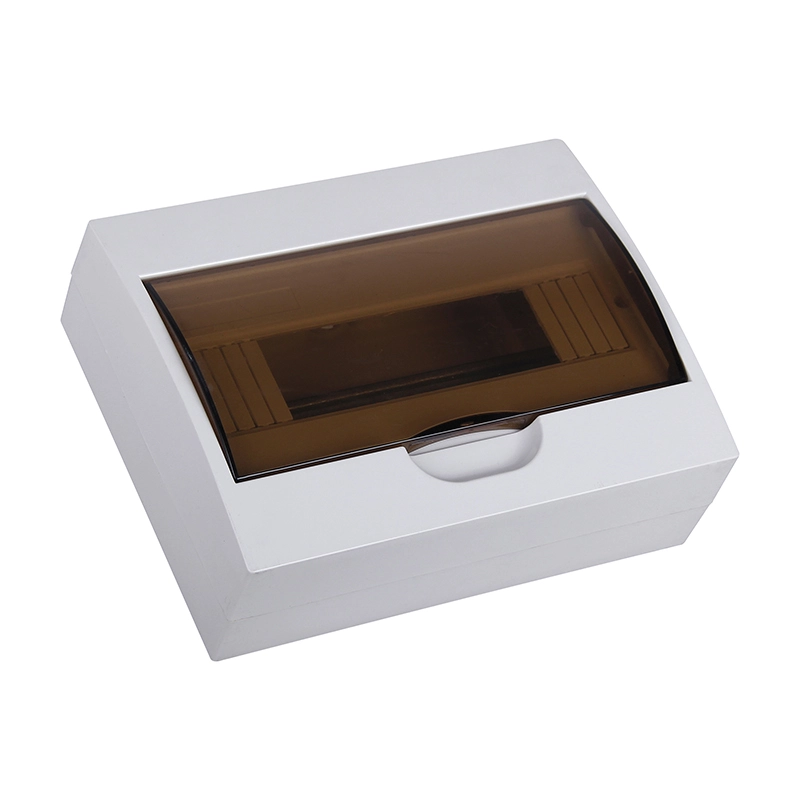

M = Surface-mounted (open)

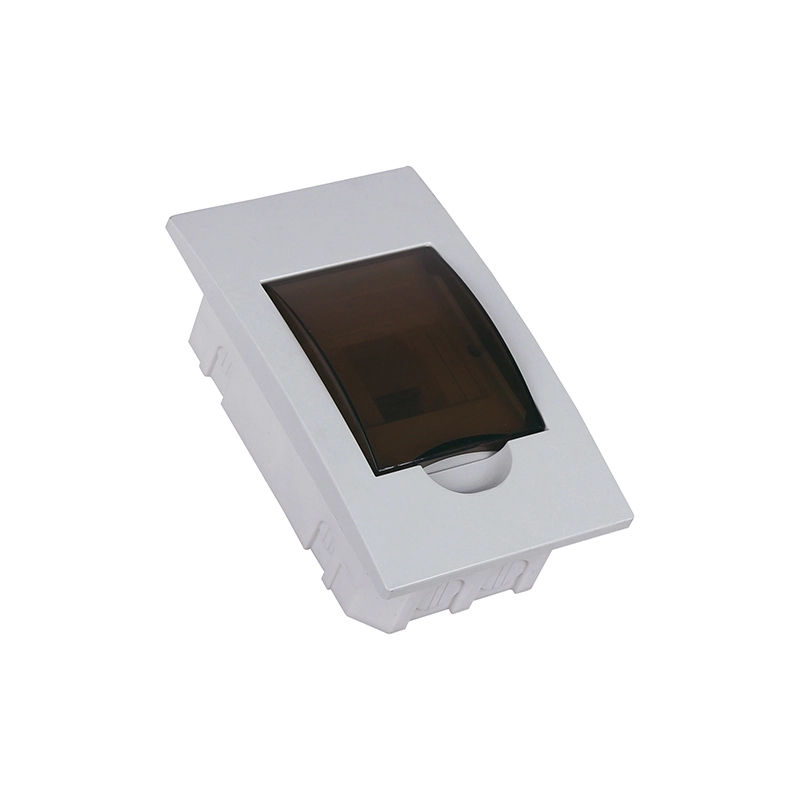

R = Concealed-mounted (flush)

Cover: Transparent (A) – lets you see breaker status at a glance

Rated Current: 63A | Short-Circuit Making Capacity: 10kA

Protection Rating: IP40 (indoor dry locations only)

Standard Color: White

Custom Finishes: Dark green, brown, ivory face covers available for design-integrated projects

Installation Tip from Our Engineers: Always leave 10–15mm clearance around concealed boxes during wall cutout to allow for plaster tolerance. Use our pre-drilled mounting flanges—they align perfectly with standard stud spacing.

Model Selection Guide

Note: The “P” in model name = Plastic Base (vs. iron base “I”). Choose P for cost-effective, lightweight indoor applications where extreme mechanical load isn’t expected.

Dimensions & Packing (Key Models)

Logistics Advice: For container loading, mix small and large boxes to optimize space. We provide stackable cartons with reinforced corners—ideal for long-haul shipping.

Aesthetic & Functional Design

We believe electrical panels shouldn’t be hidden—they should blend in beautifully. That’s why the TSM Plastic Distribution Box features:

★ Lure Ivory or custom-colored face frames that complement wood, marble, or painted walls

★ Non-yellowing PC cover – stays clear for >10 years indoors

★ Smooth snap-on mechanism – no screws needed for daily inspection

Maintenance & Safety Guidance (From CDADA R&D Team)

✅ Do:

★ Inspect breakers quarterly through the transparent cover

★ Ensure all terminals are torqued to spec during initial install

★ Label circuits clearly on the inner door

❌ Don’t:

★ Install in bathrooms, outdoors, or dusty workshops (IP40 ≠ moisture/dust proof)

★ Overload beyond 63A total current

★ Use non-standard DIN rail accessories

Remember: This is an empty enclosure. Always pair with certified MCBs (like CDADA DAB7 series) rated for your load.

Frequently Asked Questions

Q1: What’s the difference between TSM Plastic (P) and Iron Base (I) models?

A1: Plastic base (P) is lighter and more economical—perfect for standard residential use. Iron base (I) offers higher rigidity and grounding—recommended for industrial or high-vibration sites. For most homes, P is sufficient and cost-effective.

Q2: Can I use this box outdoors or in a garage?

A2: No. With IP40 rating, it’s only suitable for dry, indoor environments. For garages, sheds, or outdoor meter rooms, consider our IP65-rated metal enclosures.

Q3: Is the transparent cover replaceable?

A3: Yes! The cover is modular and snap-fit. We supply spare covers in white or custom colors—just match your model number.

Q4: Do you include busbars or neutral bars?

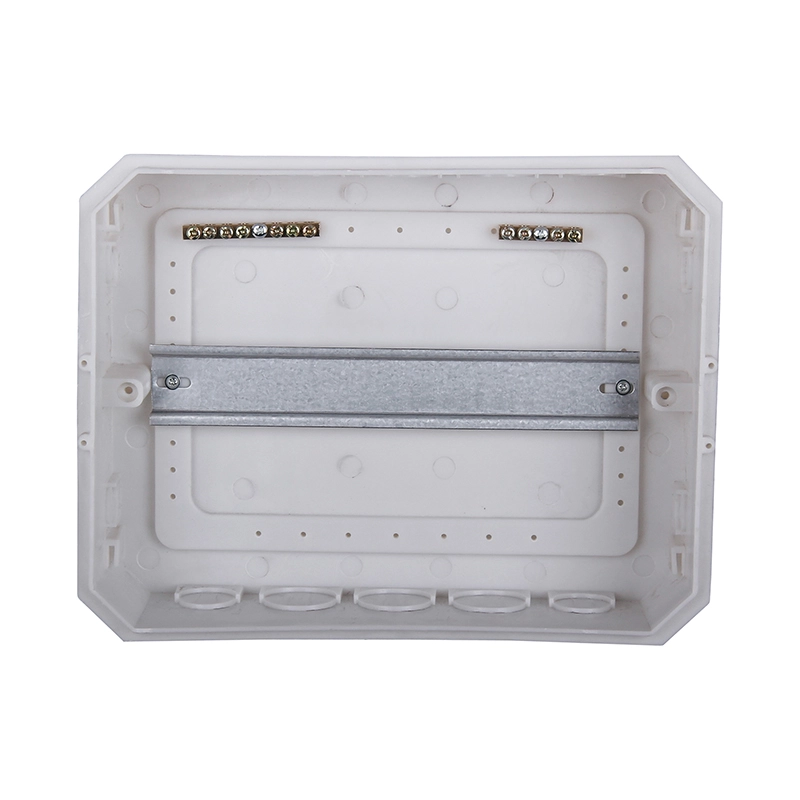

A4: Standard units include neutral and earth terminal blocks. Phase busbars (for MCB input) are optional—let us know your configuration, and we’ll pre-assemble it.

Q5: Why choose CDADA TSM Plastic DB over local brands?

A5: Because we offer:

● Consistent material quality (no brittle recycled plastic)

● Precise DIN rail alignment – no wobble when inserting breakers

● Global compliance documentation (RoHS, IEC-ready)

● Design flexibility (colors, sizes, mounting)

● Direct factory support – no middlemen, faster response
