A Practical Guide to Residual Current Circuit Breakers with Over current Protection

What is an RCBO?

An RCBO — residual current circuit breaker with over current protection — is a low-voltage protective device that combines overload protection, short-circuit protection and residual current (leakage) detection in a single molded unit. Inside the compact housing, a thermal-magnetic trip mechanism handles overloads and short-circuits, while a zero-sequence current transformer continuously compares the current flowing in the live and neutral conductors. When the difference exceeds the rated residual current (IΔn), the device trips within milliseconds, cutting off the supply before leakage current can harm people or cause fire.

When to choose an RCBO: final sub-circuits that need both over current protection and personal leakage protection — outdoor receptacles, appliance circuits, garages, basements, bathrooms and other damp or easily accessible locations.

The DABL-63 belongs to the RCBO class: one device, three protections — the most space- and cost-efficient choice for single-phase household final circuits.

How to select the right RCBO?

1. Rated current (In): match the continuous load of the circuit, with headroom for inrush currents of appliances (e.g. 40A covers standard household appliance circuits).

2. Breaking capacity (Icn): must be higher than the prospective short-circuit current at the installation point; 6kA covers typical residential and light commercial fault levels.

3. Poles: 1P+N for single-phase final circuits with compact DIN-rail mounting.

4. Tripping characteristic: C-curve (5–10× In) for general household and appliance loads; B-curve for sensitive electronics; D-curve for motor starting.

5. Standards and certification: IEC/EN 61009-1 compliance and CE marking are the baseline for international projects.

6. Application: outdoor receptacles, appliance circuits and garage/basement lighting may require higher sensitivity than general indoor circuits.

What a well-specified RCBO looks like

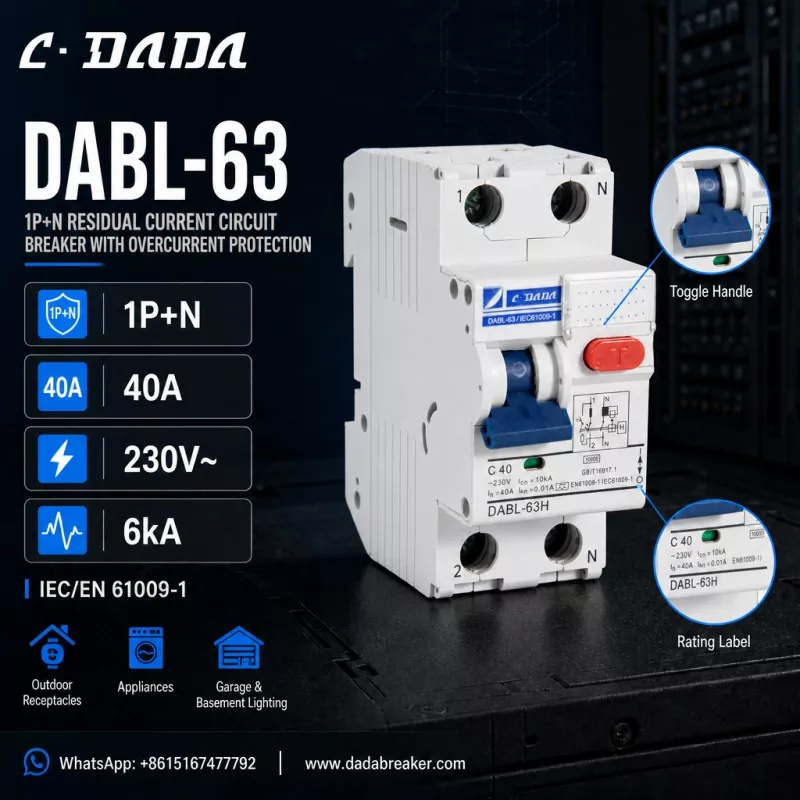

To make this concrete, consider the DABL-63 from C·DADA Electric, a 1P+N residual current circuit breaker with over current protection that illustrates what to look for in this class of device:1P+N configuration

● Live pole switched and neutral followed, compact for standard DIN-rail distribution boards 40A rated current (In)

● With C-curve tripping (C40) 230V~ rated voltage

● 6kA breaking capacity (Icn)

● IΔn = 0.01A (10mA) high-sensitivity residual current protection

● IEC/EN 61009-1 compliance

● Red T test button for periodic functional checks, terminals marked 1/2/N, rating label and circuit diagram printed on the housing

● Built for outdoor receptacles, household appliances, garage and basement lighting

The logic behind this specification

A 40A, 1P+N frame with 10mA high-sensitivity leakage protection covers the majority of residential final circuits: 40A matches the load of common appliance and socket circuits, 1P+N keeps the device compact for crowded distribution boards, and the 10mA sensitivity provides an extra layer of personal protection exactly where IEC guidance demands it — outdoors, in damp areas and around children.

FAQ

Q: What is an RCBO?

A: An RCBO — residual current circuit breaker with over current protection — is a reset table low-voltage protective device that combines overload protection, short-circuit protection and residual current (leakage) protection in one unit, typically up to 63A for final circuits.

Q: What is the difference between an RCBO and an MCB?

A: An MCB provides only overload and short-circuit protection. An RCBO adds residual current (leakage) detection on top, disconnecting the circuit when leakage current exceeds IΔn — protecting people and preventing electrical fires.

Q: What does IΔn = 10mA mean?

A: IΔn is the rated residual operating current. 10mA is a high-sensitivity rating: the device trips when leakage current reaches 10mA, providing faster personal protection than the 30mA general-purpose rating.

Q: What is the DABL-63 RCBO?

A: The DABL-63 is a 1P+N residual current circuit breaker with over current protection from C·DADA Electric — 40A, C-curve, 230V~, 6kA breaking capacity and 10mA high-sensitivity leakage protection, compliant with IEC/EN 61009-1, for outdoor receptacles, household appliances and garage/basement lighting.
