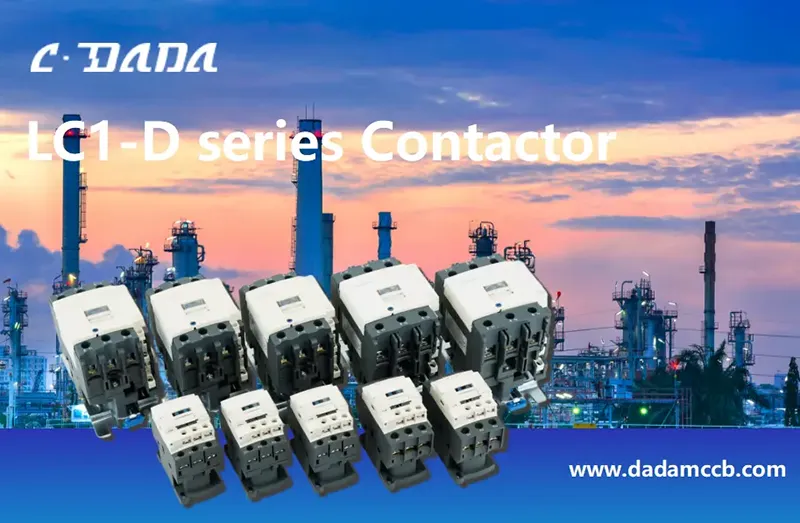

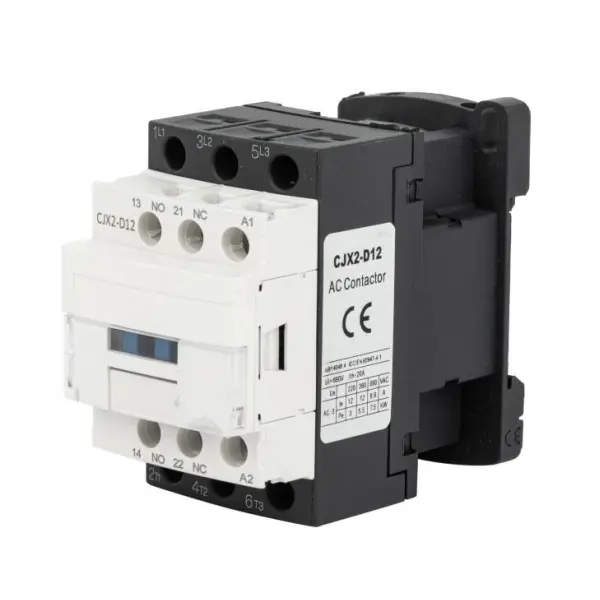

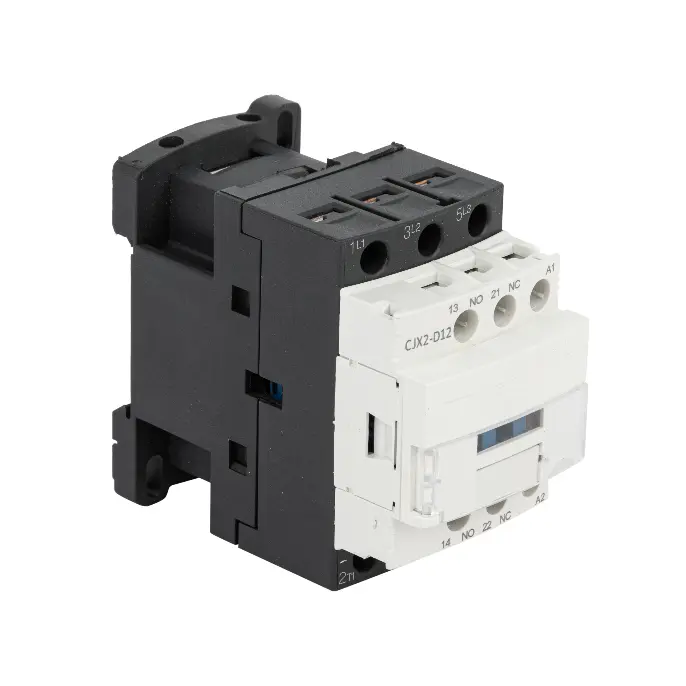

D Contactor
Model:LC1-D Series
Shanghai DADA Electric is a reliable manufacturer and we have our own brands, CDADA. Our D Contactor (LC1-D Series) is IEC 60947-4-1 certified, 3P/4P, up to 620A, AC-3/AC-4 rated. Wide coil voltage options. We recommond this product for motor control & industrial automation, contact us for a quote.
Engineer reliable motor control and power switching with the CDADA LC1-D Series D Contactor a high-performance AC contactor designed by Shanghai DADA Electric CO.,LTD to meet IEC/EN 60947-4-1 standards. Built for industrial, commercial, and infrastructure applications, the LC1-D series supports 3-pole or 4-pole configurations with rated currents from 9A to 95A (up to 620A in heavy-duty variants) and controls 3-phase squirrel-cage motors up to 45kW (at 380–415V, AC-3 duty).
Equipped with standard 1NO+1NC auxiliary contacts, it integrates seamlessly with thermal overload relays for full motor protection. With AC or DC coil options (24V–600V), AC-3 and AC-4 utilization categories, and a robust design rated for 690V insulation, the CDADA D Contactor delivers dependable performance in frequent start-stop cycles, conveyor systems, pumps, compressors, and HVAC units—even in demanding environments up to 40°C ambient temperature and 2000m altitude.
Key Specifications
Series: D Contactor
Brand: CDADA | Manufacturer: Shanghai DADA Electric CO.,LTD
Standard: IEC/EN 60947-4-1
Certification: CE
Poles: 3P or 4P (selectable)
Rated Operational Current (AC-3): 9A – 95A (up to 620A in extended range)
Motor Power Control (AC-3):
380/415V: 4kW – 45kW
660/690V: up to 45kW
Utilization Categories: AC-3 (squirrel-cage motors), AC-4 (plugging & inching)
Rated Insulation Voltage: 690V AC
Ambient Temperature: –5°C to +40°C
Altitude: ≤ 2000m
Mounting: Vertical plane ±5°, Mounting Category III
Auxiliary Contacts: 1NO + 1NC (standard on all models)
Coil Options:
AC Coils: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V
DC Coils: 24V, 36V, 48V, 110V, 220V
Technical Data sheet
|
Items |
Model |
LC1-D09 |
LC1-D12 |
LC1-D18 |
LC1-D25 |
LC1-D32 |
|
|
Pole |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
||
|
Auxiliary Contact |
1NO+1NC |
1NO+1NC |
1NO+1NC |
1NO+1NC |
1NO+1NC |
||
|
Rated conventional heating current (A) AC-1 |
20 |
20 |
30 |
40 |
50 |
||
|
Rated operational current (A) |
380/400V |
AC-1 AC-4 |
9 |
12 |
18 |
25 |
32 |
|
3.5 |
5 |
7.7 |
8.5 |
12 |
|||
|
660/690V |
AC-3 AC-4 |
6.6 |
8.9 |
12 |
18 |
21 |
|
|
1.5 |
2 |
3.8 |
4.4 |
7.5 |
|||
|
Rated insulation voltage (V AC) |
690 |
690 |
690 |
690 |
690 |
||
|
Power of controlled 3-phase cage motor (AC-3) |
kW |
220/230V AC 380/415V AC 660/690V AC |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
4 |
5.5 |
7.5 |
11 |
15 |
|||
|
5.5 |
7.5 |
10 |
15 |
18.5 |
|||
|
AC coil(V) |
24，36，48，110，127，220，240，380，415，440，480，500，600 |
||||||
|
DC coil(V) |
24，36，48，110，220 |
||||||
|
Items |
Model |
LC1-D40 |
LC1-D50 |
LC1-D65 |
LC1-D80 |
LC1-D95 |
|
|
Pole |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
||
|
Auxilirary Circuit Cat:AC-15,Ue=4 15V le=0.95A Ith=10A |
1NO+1NC |
1NO+1NC |
1NO+1NC |
1NO+1NC |
1NO+1NC |
||
|
Rated conventional heating current (A) AC-1 |
60 |
80 |
80 |
110 |
110 |
||
|
Rated operational current (A) |
380/400V |
AC-3 AC-4 |
40 |
50 |
65 |
80 |
95 |
|
18.5 |
24 |
28 |
37 |
44 |
|||
|
660/690V |
AC-3 AC-4 |
34 |
39 |
42 |
49 |
49 |
|
|
9 |
12 |
14 |
17.3 |
21.3 |
|||
|
Rated insulation voltage (V AC) |
690 |
690 |
690 |
690 |
690 |
||
|
Power of controlled 3-phase cage motor (AC-3) |
KW |
220/230V AC 380/415V AC 660/690V AC |
11 |
15 |
18.5 |
22 |
25 |
|
18.5 |
22 |
30 |
37 |
45 |
|||
|
30 |
37 |
37 |
45 |
45 |
|||
|
AC coil(V) |
24，36，48，110，127，220，240，380，415，440，480，500，600 |
||||||
|
DC coil(V) |
24，36，48，110，220 |
||||||
|
Items |
Model |
LC1-D115 |
LC1-D150 |
LC1-D170 |
LC1-D205 |
LC1-D245 |
|||||||
|
Pole |
3 |
3 |
3 |
3/4 |
3/4 |
||||||||
|
Rated conventional heating current (A) AC-1 |
200 |
200 |
200 |
275 |
280 |
||||||||
|
Rated operational current (A) |
380/400V |
AC-3 AC-4 |
115 |
150 |
170 |
205 |
245 |
||||||
|
50 |
65 |
70 |
75 |
85 |
|||||||||
|
660/690V |
AC-3 AC-4 |
70 |
90 |
100 |
108 |
115 |
|||||||
|
25 |
32 |
35 |
38 |
40 |
|||||||||
|
Rated insulation voltage (V AC) |
690 |
690 |
690 |
690 |
690 |
||||||||
|
Power of controlled 3-phase cage motor (AC-3) |
kW |
380/415V AC 660/690V AC |
55 |
75 |
75 |
90 |
110 |
||||||
|
80 |
100 |
100 |
110 |
140 |
|||||||||
|
AC coil(V) |
110，127，220，240，380，415，440，480，500，600 |
||||||||||||
|
Items |
Model |
LC1-D300 |
LC1-D410 |
LC1-D475 |
LC1-D620 |
||||||||
|
Pole |
3/4 |
3/4 |
3/4 |
3/4 |
|||||||||
|
Rated conventional heating current (A) AC-1 |
360 |
430 |
580 |
850 |
|||||||||
|
Rated operational current (A) |
380/400V |
AC-3 AC-4 |
300 |
410 |
475 |
620 |
|||||||
|
124 |
150 |
185 |
188 |
||||||||||
|
660/690V |
AC-3 AC-4 |
190 |
235 |
290 |
360 |
||||||||
|
60 |
72 |
85 |
170 |
||||||||||
|
Rated insulation voltage (V AC) |
690 |
690 |
690 |
690 |
|||||||||
|
Power of controlled 3-phase cage motor (AC-3) |
kW |
380/415V AC 660/690V AC |
160 |
200 |
250 |
335 |
|||||||
|
220 |
280 |
330 |
450 |
||||||||||
|
AC coil(V) |
110, 127，220，240，380，415，440，480，500，600 |
||||||||||||

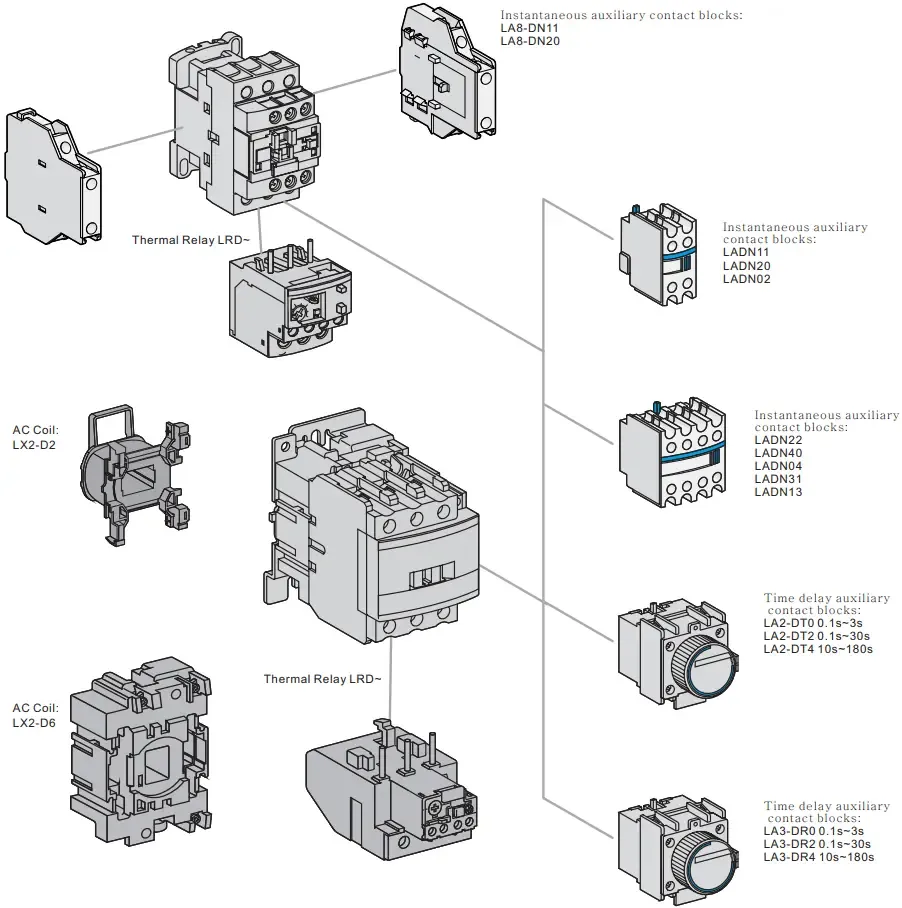

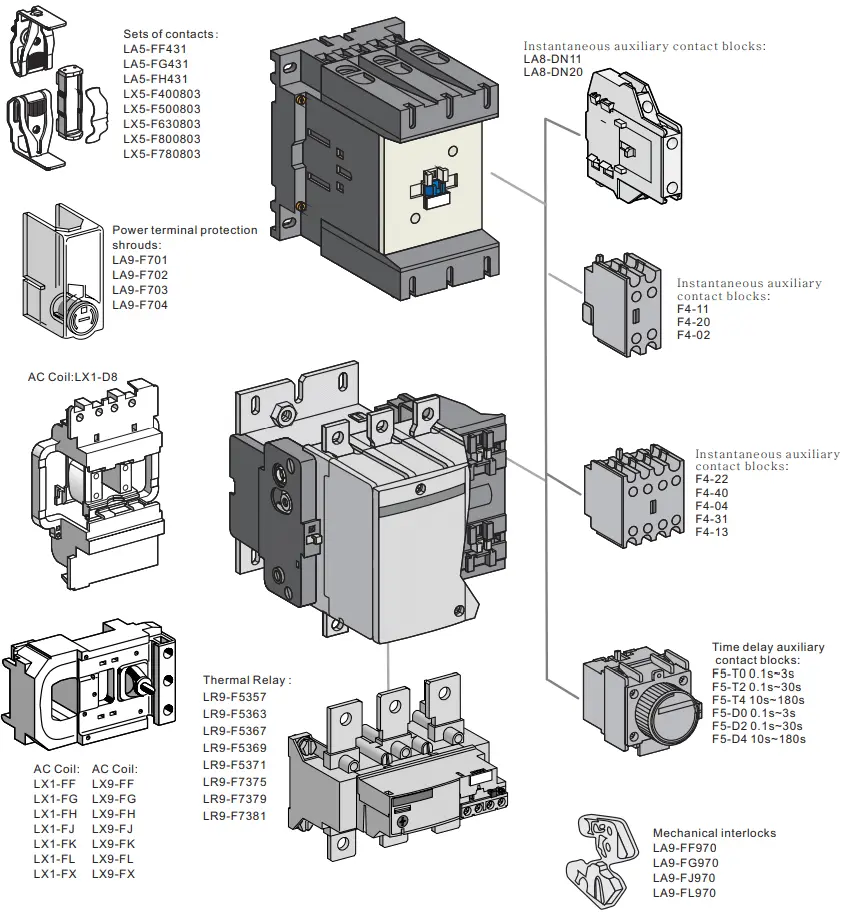

Accessories
Why Choose CDADA D Contactor?
★ True IEC Compliance
Designed and tested to IEC/EN 60947-4-1—ensuring global acceptance and interoperability.★ Full Motor Control Solution
Pair with CDADA thermal overload relays for complete motor starter assemblies—overload + short-circuit + isolation.★ Wide Voltage Flexibility
Choose from 13 AC and 5 DC coil voltages—ideal for global projects or mixed-voltage panels.★ Robust for Heavy Duty
Supports AC-4 duty (frequent reversing/plugging)—perfect for cranes, elevators, and conveyors.★ Plug-and-Play Integration
Standard 1NO+1NC auxiliary contacts enable easy interlocking, signaling, or PLC feedback.★ Industrial-Grade Reliability
Tested for high electrical endurance, low contact resistance, and stable arc suppression—minimizing downtime.★ Our key advantages are: 1) Complete international certifications, 2) Strong OEM/ODM capability, 3) High cost-performance ratio, 4) Reliable large-scale production capacity, 5) Extensive export experience.
★ Our products are successfully exported to Southeast Asia, the Middle East, South America, Africa, Europe, and CIS countries, with a strong focus on Belt and Road markets.
Typical Applications
Motor Starters: Pumps, fans, compressors, mixers
HVAC Systems: Chiller & blower control
Industrial Automation: Conveyor lines, packaging machines
Building Management: Elevator control, lighting banks
Energy & Water: Wastewater treatment, irrigation systems
Frequently Asked Questions
Q1: What does “D Contactor” mean?
A1: “D” refers to the series designation (LC1-D) used globally for this modular, standardized AC contactor platform. It’s not a technical classification—but widely recognized in panel building for its compatibility with accessories like overload relays and mechanical interlocks.
Q2: What’s the difference between AC-3 and AC-4 duty?
A2:● AC-3: Normal starting/stopping of squirrel-cage motors (e.g., pumps, fans). Lower stress.
● AC-4: Frequent plugging, inching, or reversing (e.g., cranes, hoists). Higher electrical stress → requires more robust contacts. → CDADA LC1-D is rated for both, making it versatile.
Q3: Can I use this contactor without an overload relay?
A3: Not recommended for motor loads. The contactor only switches power—it does not protect against overloads. Always pair with a thermal or electronic overload relay for motor safety.
Q4: Are 4-pole versions available?
A4: Yes! All LC1-D models support 3P or 4P configurations—ideal for neutral-switching applications or 4-wire systems.
Q5: Why choose CDADA over other D-series contactors?
A5: CDADA offers:● Genuine IEC 60947-4-1 compliance with test reports
● Wider coil voltage range (including 415V, 480V, 600V for export)
● Consistent quality with silver-alloy contacts and arc chutes
● OEM-friendly pricing and fast sample turnaround
● Global certifications (CE) and English documentation
