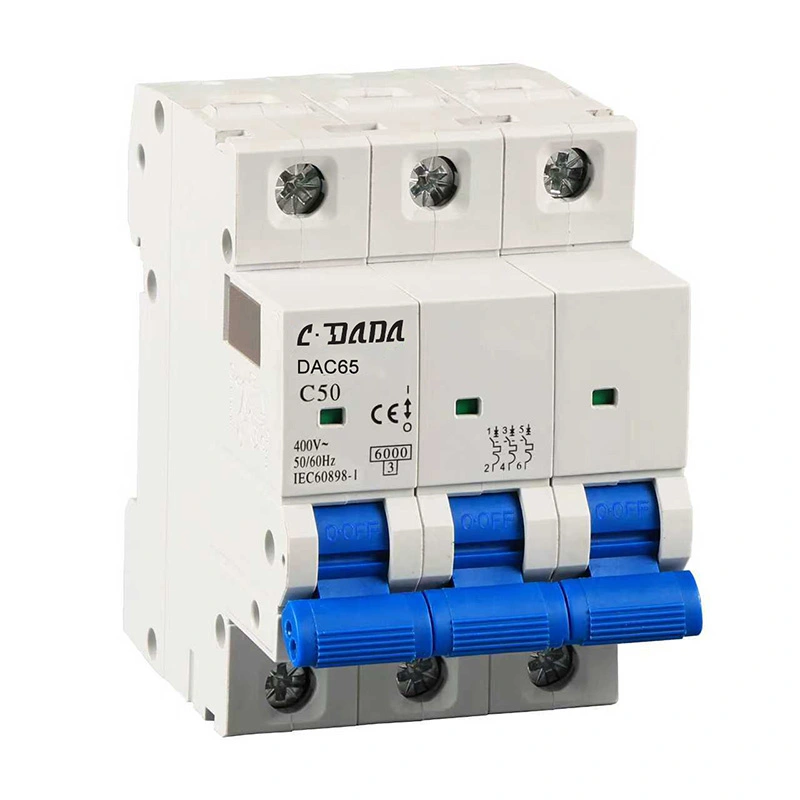

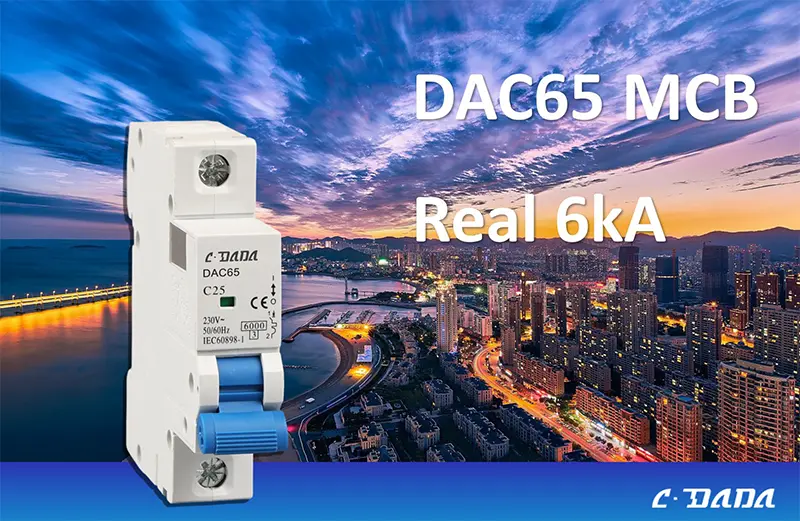

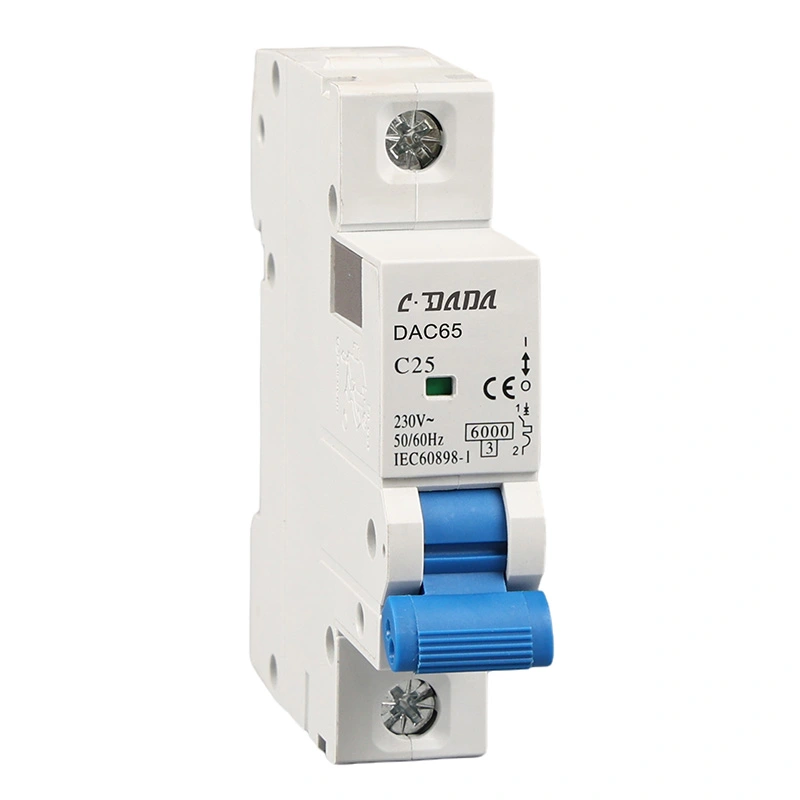

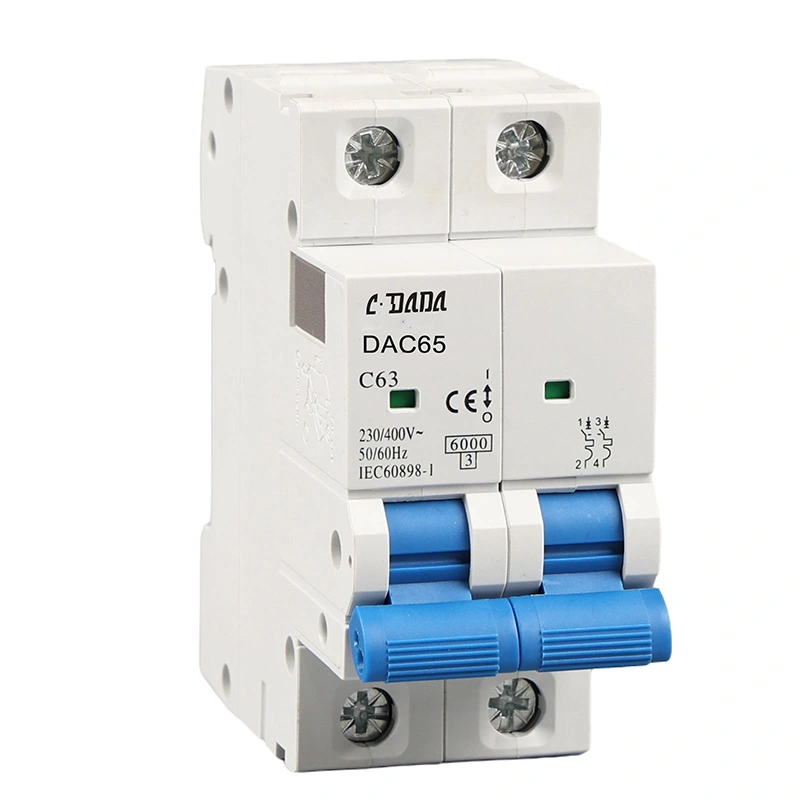

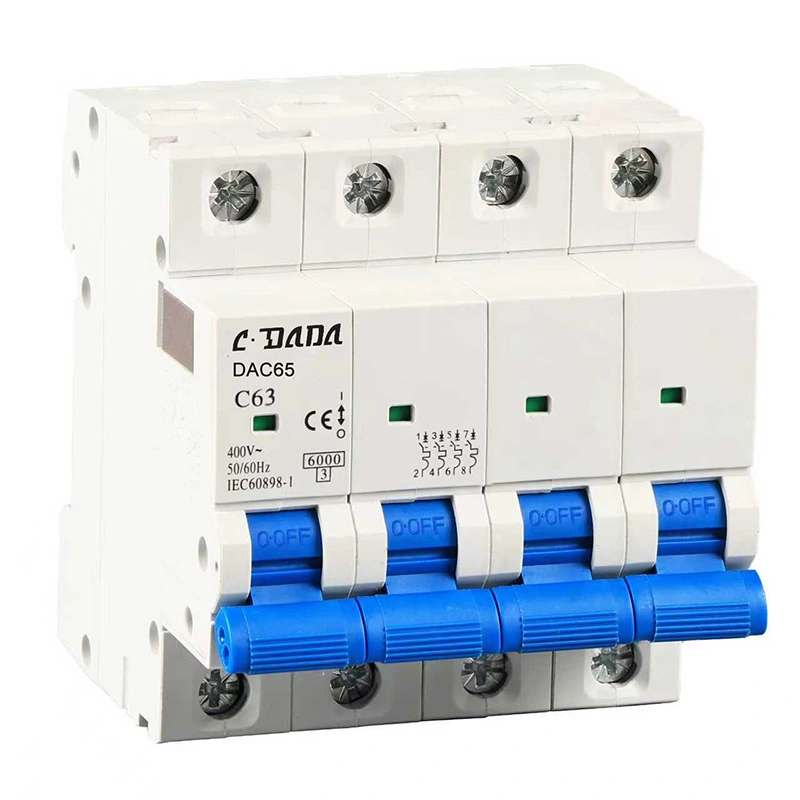

Miniature Circuit Breaker REAL 6KA
Model:DAC65
Contact CDADA today and let us be your supplier of Miniature Circuit Breaker REAL 6KA, a high-quality miniature circuit breaker compliant with IEC/EN60898 for reliable circuit protection. It features thermal magnetic tripping and a flame-retardant shell, is easy to install on DIN rail, and is simple to maintain. It combines stable performance with durable design, achieving long service life for residential and industrial power distribution.
CDADA DAC65 Miniature Circuit Breaker REAL 6KA is a high-performance miniature circuit breaker designed for AC 50/60Hz power systems. It provides effective overload and short-circuit protection, with B/C/D tripping curves to fit different loads. Widely used in distribution boards, residential buildings, factories, and commercial facilities, it is the top choice for global buyers and OEM partners.
Key Advantages
★ REAL 6kA high breaking capacity for stable short-circuit protection
★ Thermal-magnetic release for accurate and fast tripping
★ Compact size: 17.8mm per pole, space-saving for cabinets
★ IP20 protection degree, safe to touch and operate
★ Wide wiring range: supports 0.5–63A, flexible and rigid cables
★ DIN rail mounting for quick installation
★ Flame-retardant shell, high temperature resistance
★ Stable performance in -5℃~+40℃ ambient environment
Applications
CDADA Miniature Circuit Breaker REAL 6KA is widely used in:
★ Residential buildings, apartments, villas
★ Offices, shopping malls, hotels, public buildings
★ Industrial workshops, small power equipment
★ Lighting systems, power sockets, distribution panels
★ Fans, pumps, compressors and small motors
★ Infrastructure and electrical renovation projects
Technical Parameters
| Item | Specification |
| Model | DAC65 MCB REAL 6KA |
| Standard | IEC/EN60898 |
| Breaking Capacity | 6kA |
| Rated Current | 0.5,1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Poles | 1P,1P+N,2P,3P,3P+N,4P |
| Tripping Curve | B(3-5In), C(5-10In), D(10-20In) |
| Rated Voltage | 1P:240V; 2P:240/415V; 3P/4P:415V |
| Insulation Voltage | 500V |
| Impulse Voltage | 6kV |
| Energy Limiting Class | 3 |
| Protection Degree | IP20 |
| Installation | 35mm DIN rail |
| Terminal Type | Lug type / Pin type |
| Ambient Temperature | -5℃ ~ +40℃ |

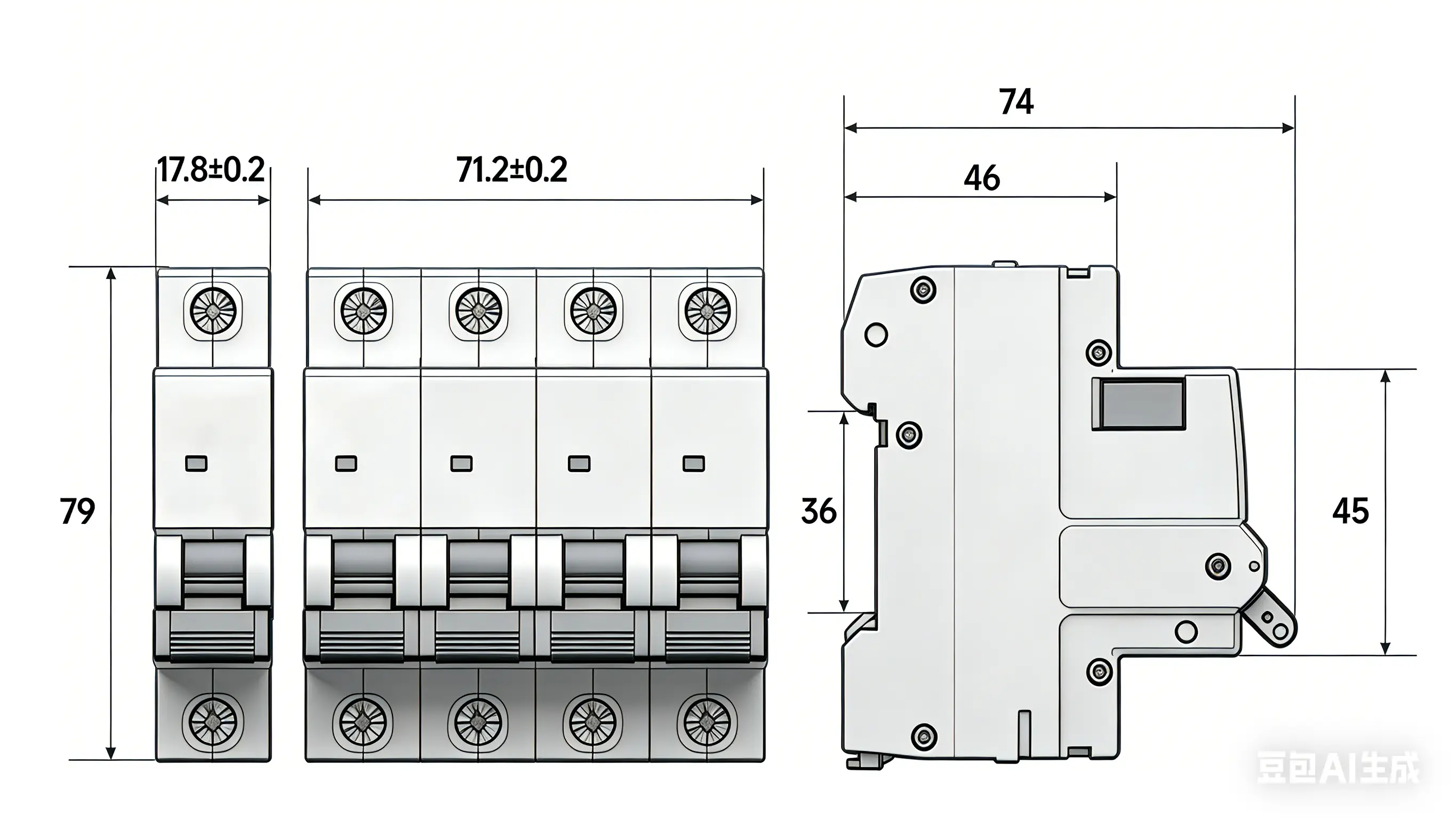

Outline Dimensions
★ Width: 17.8mm per pole
★ Mounting: Standard 35mm DIN rail
★ Wiring capacity: Up to 35mm² rigid cable
★ Compact structure for standard distribution boxes
Standard Testing Items
★ 1.13In non-tripping test (≥1h)
★ 1.45In tripping test (<1h)
★ Magnetic tripping characteristic test
★ Temperature rise test
★ Dielectric voltage withstand test
★ Short-circuit breaking capacity test (6kA)
★ Mechanical & electrical endurance test

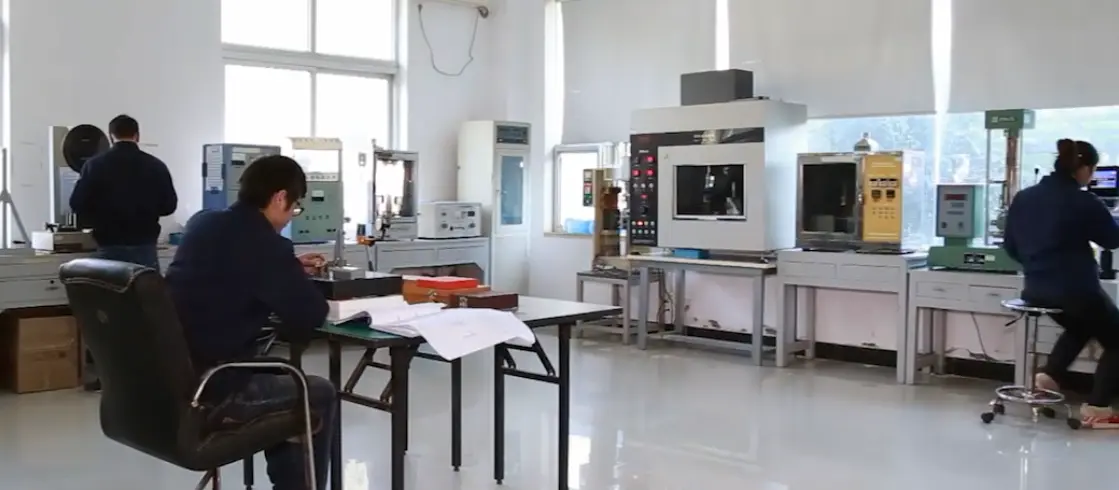

Quality Control Process
1. Raw material incoming inspection
2. Automatic production & precision assembly
3.100% full tripping calibration
4. High/low temperature running test
5. Withstand voltage & insulation test

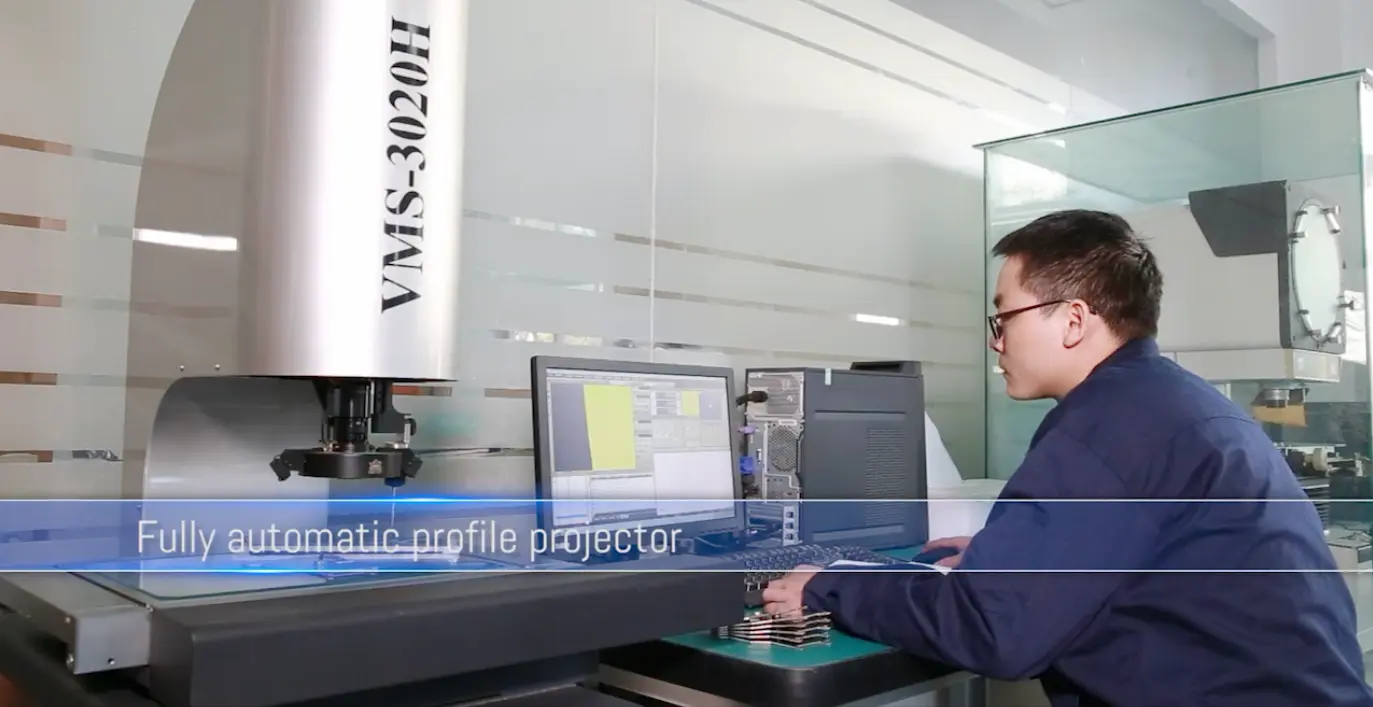

6. Appearance & dimension inspection
7. Final inspection before packaging
Packaging & Shipping
★ Standard export carton with shockproof inner lining
★ Clear label: model, current, poles, quantity, certification
★ Group box packaging to avoid scratch and damage
★ Suitable for sea, air and land transportation
★ Support OEM label & custom packaging
Customer Success Cases
CDADA Miniature Circuit Breaker REAL 6KA has long-term partnerships worldwide:
★ Bulk supply for European distributors and contractors
★ Residential & commercial projects in Middle East & Africa
★ OEM cooperation with global electrical brands
★ Power distribution systems in Southeast Asia & South America
★ Long-term orders from importers and electrical integrators
