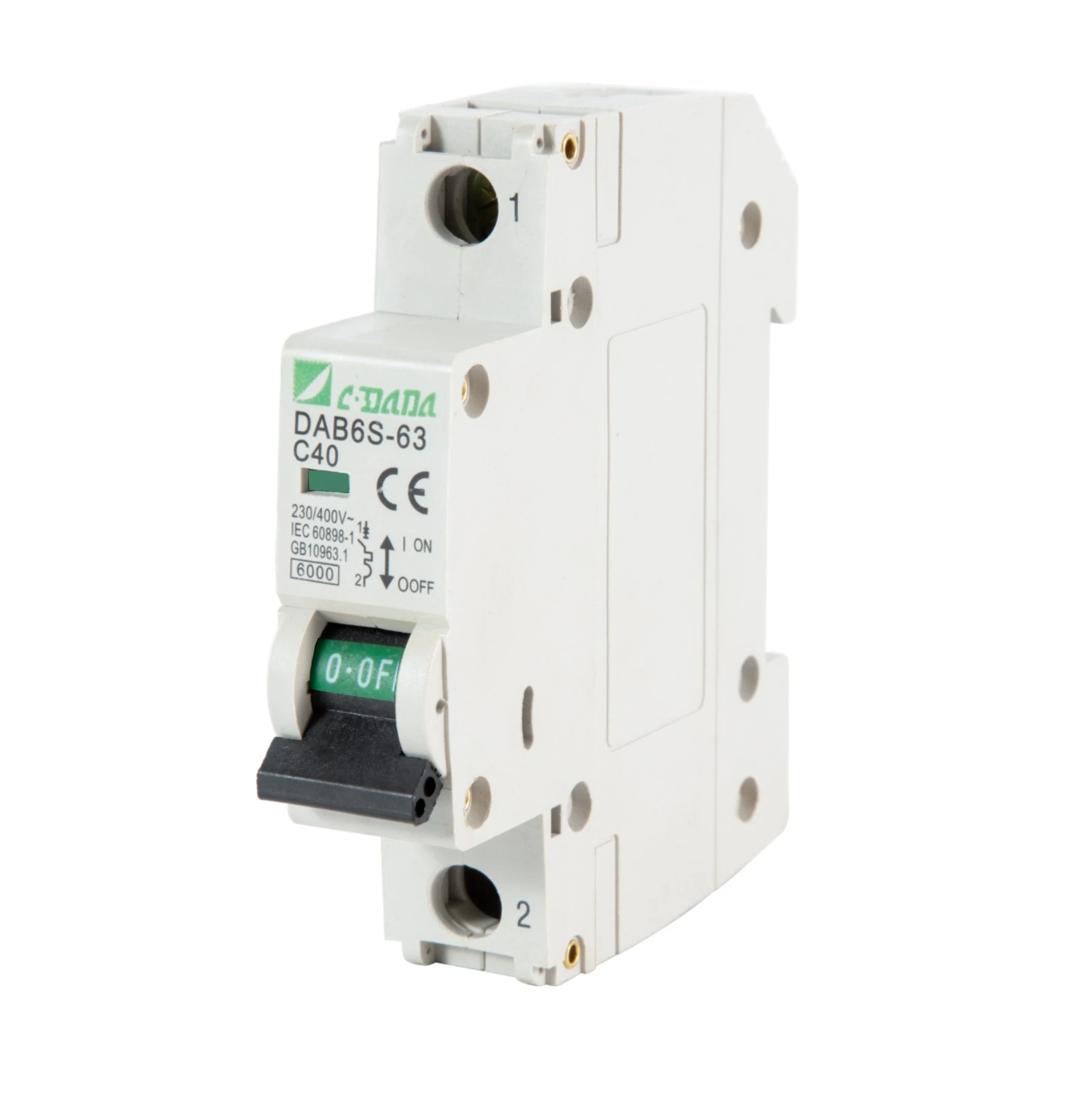

6kA AC Miniature Circuit Breaker

Ensure reliable, safe, and efficient circuit protection in homes and small commercial buildings with the CDADA DAB6-63 6kA AC Miniature Circuit Breaker. Designed for residential distribution panels, this 6kA miniature circuit breaker offers precise overload and short-circuit protection across a variety of loads—from lighting and appliances (B curve) to motors with high inrush currents like pumps and hoists (D curve).

With CE and CB certifications, robust terminal design, and an operating temperature range of –40°C to +50°C, the DAB6-63 delivers dependable performance in any climate. Its updated wide lever ensures secure operation, while notched clamps reduce heat buildup and enhance connection stability—making it the smart choice for electricians, builders, and OEM panel assemblers.

Key Specifications

Model: DAB6-63 Series

Type: AC Miniature Circuit Breaker (MCB)

Breaking Capacity: 6kA @ 230/400V AC

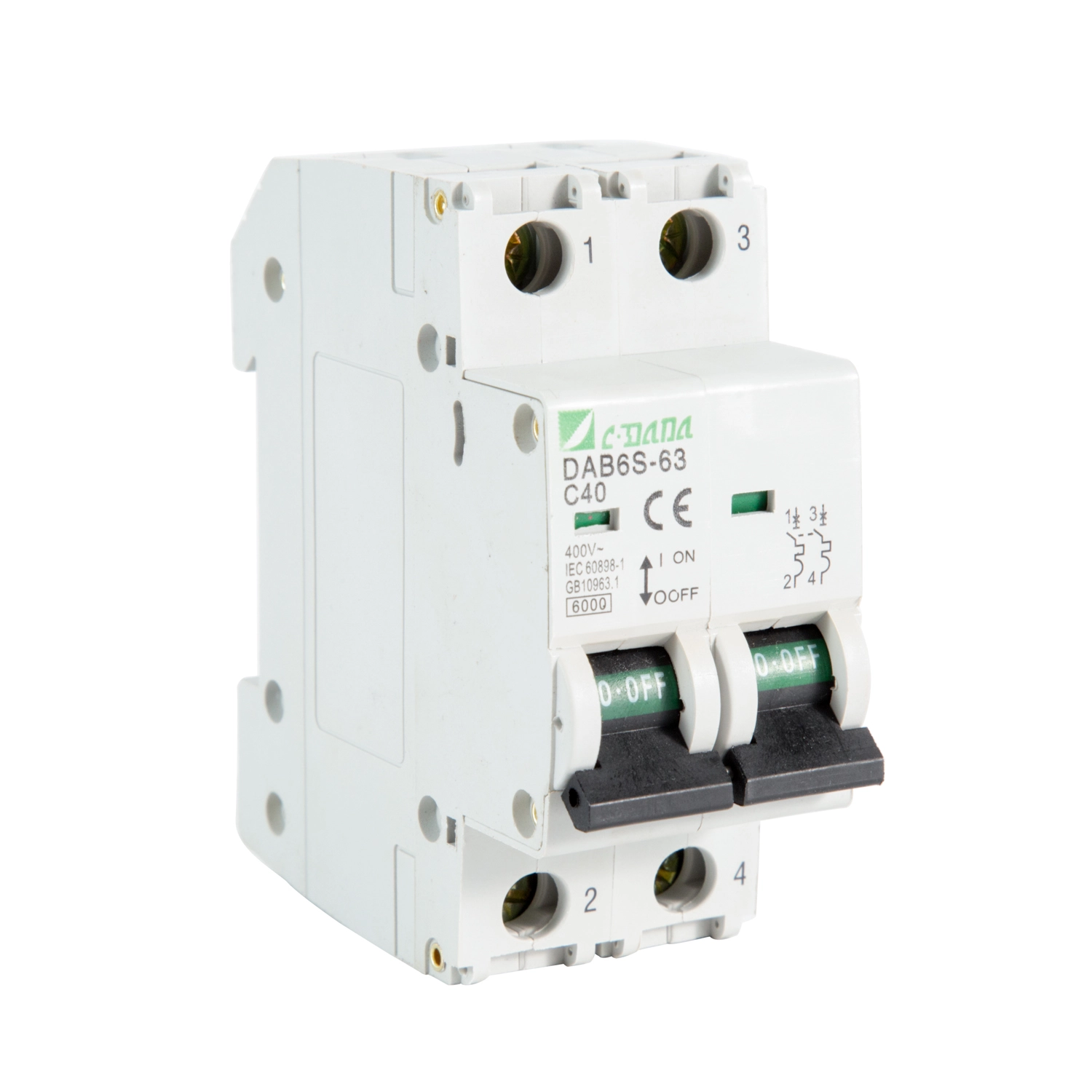

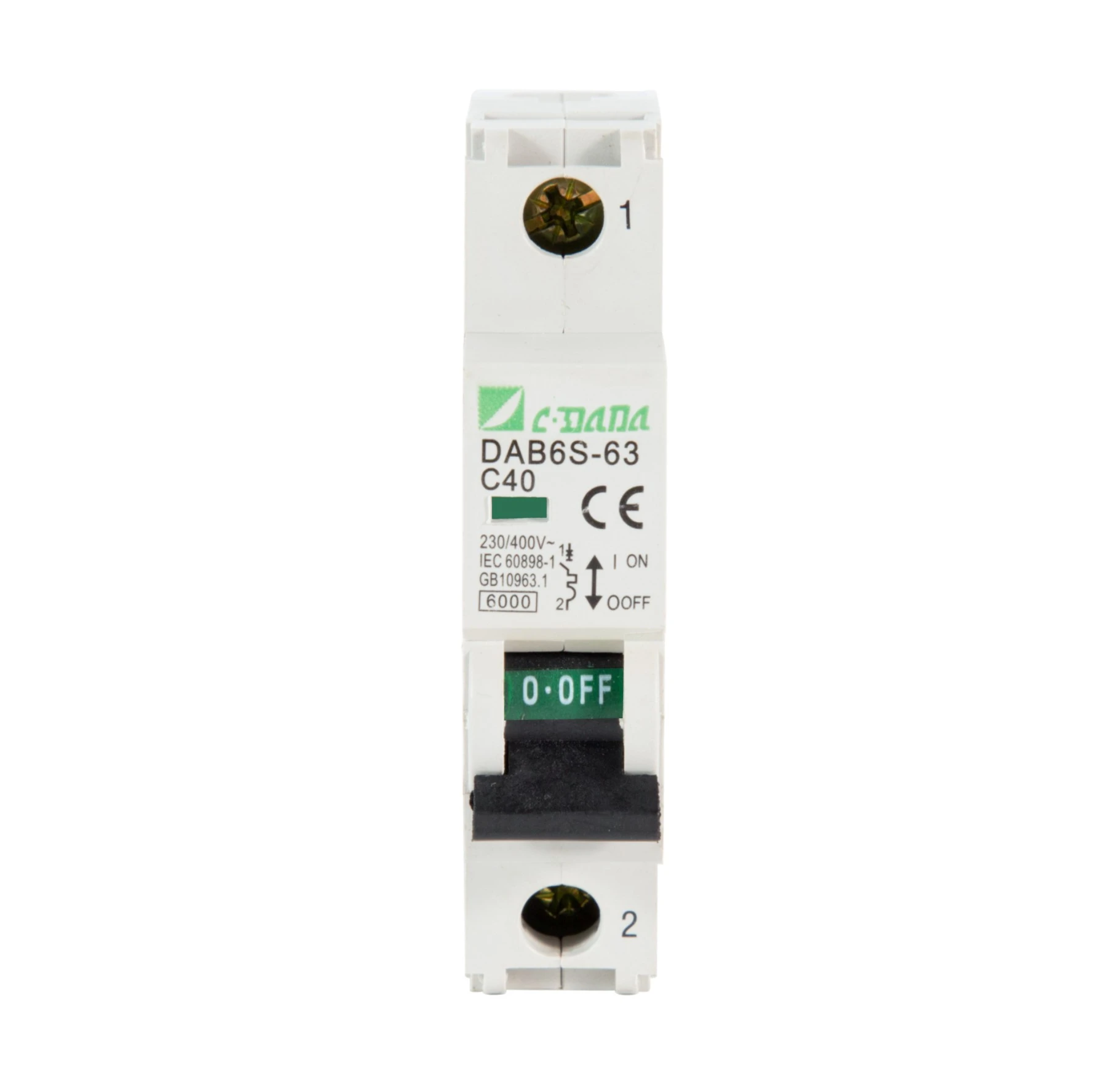

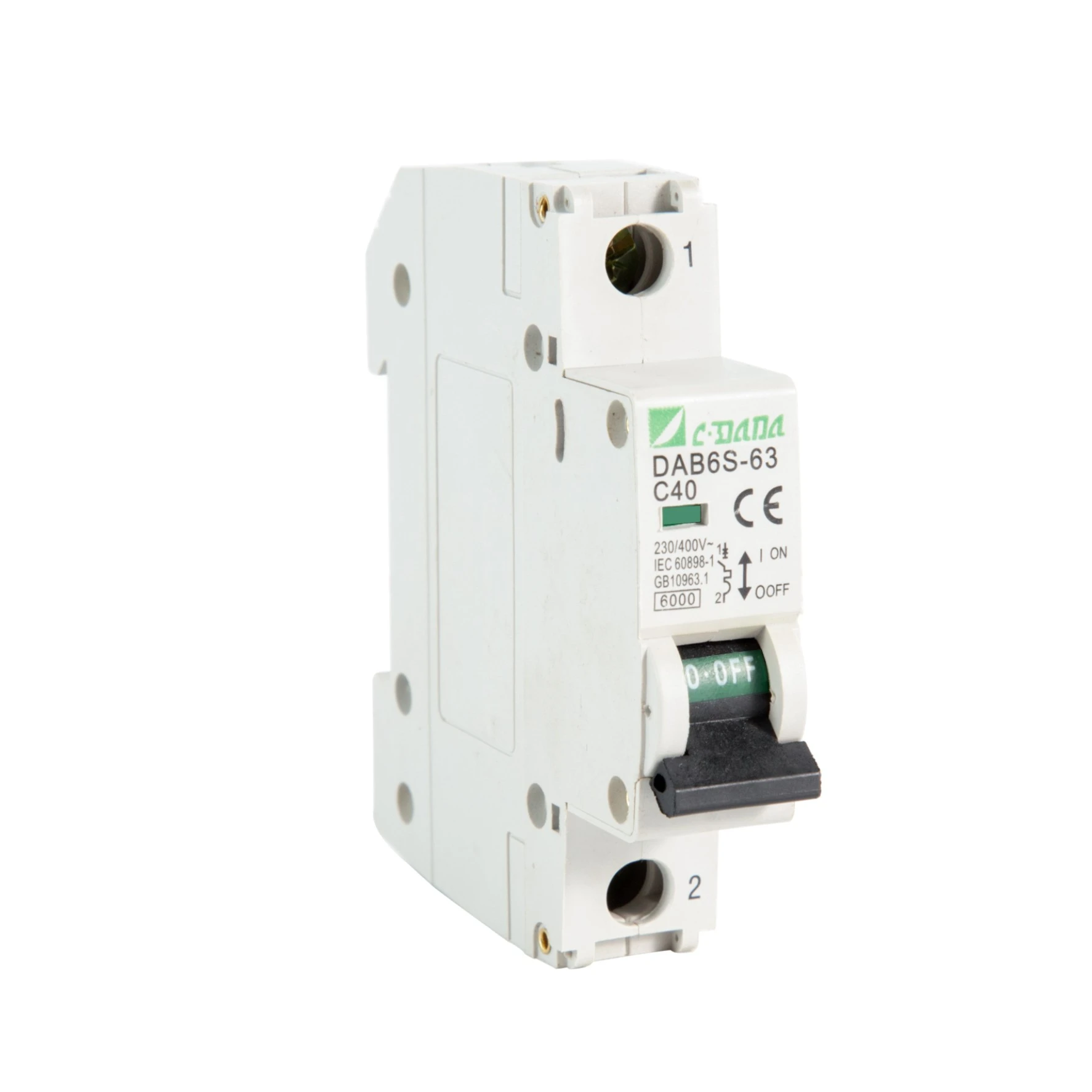

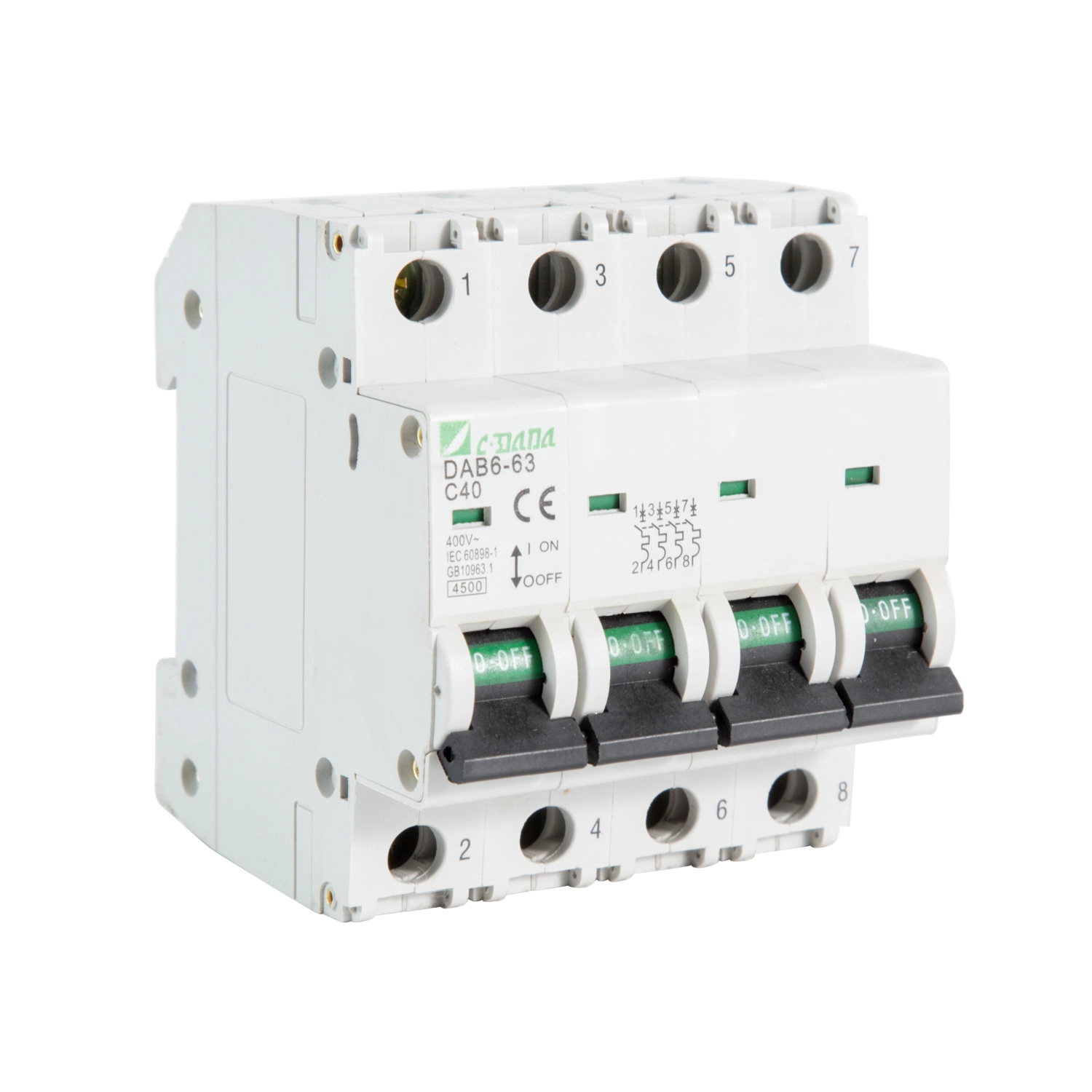

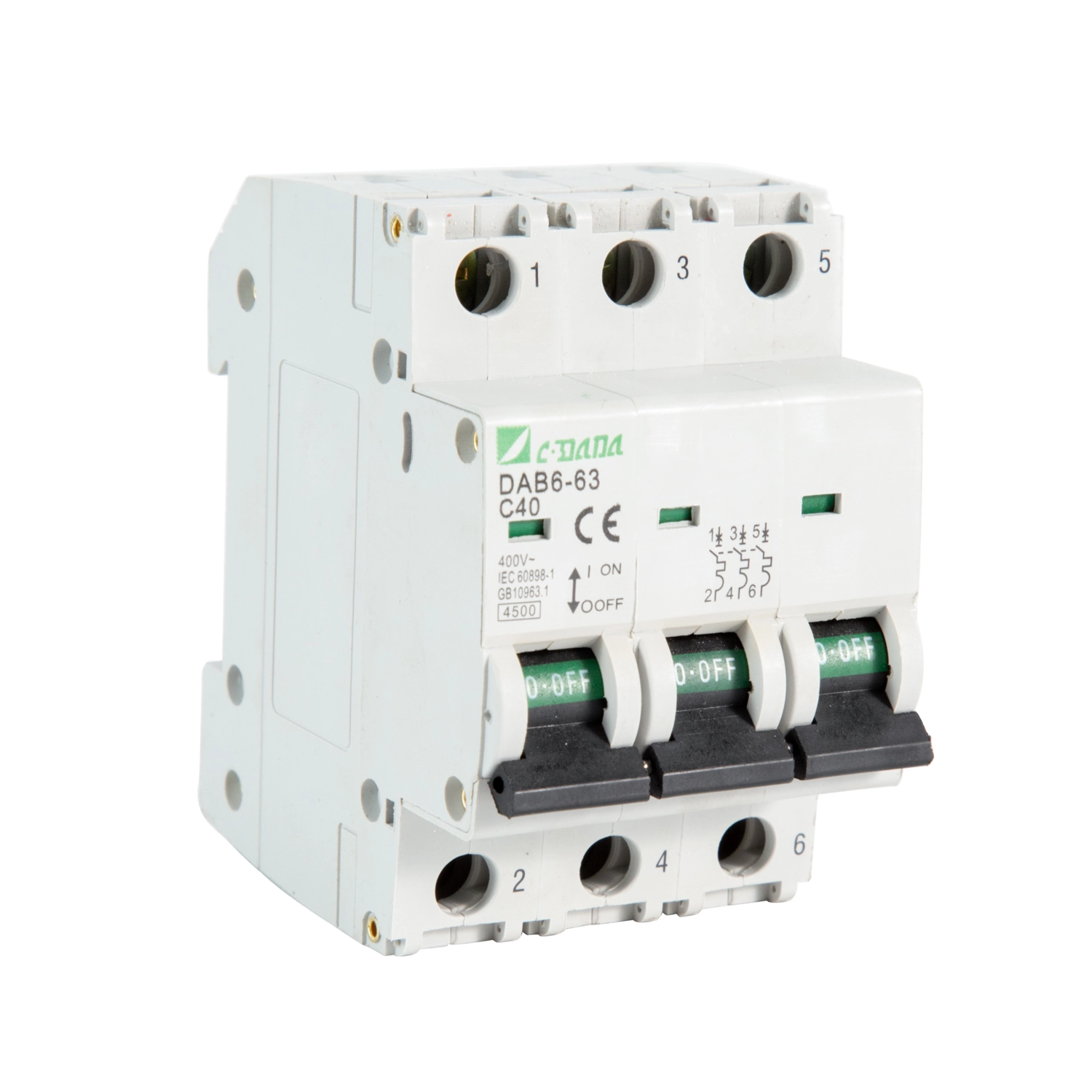

Poles: 1P, 2P, 3P，4P

Trip Curves:

B: For lighting & resistive loads (3–5×In)

C: For general-purpose motors (5–10×In)

D: For high inrush loads like compressors/pumps (10–20×In)

Rated Current (In): 1A – 63A (standard steps)

Operating Temperature: –40°C to +50°C

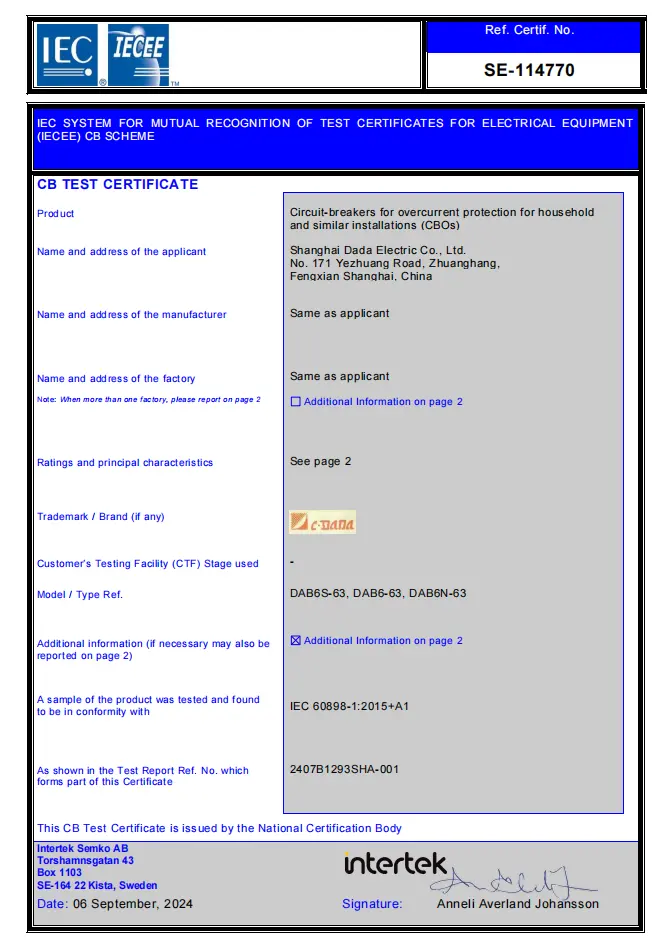

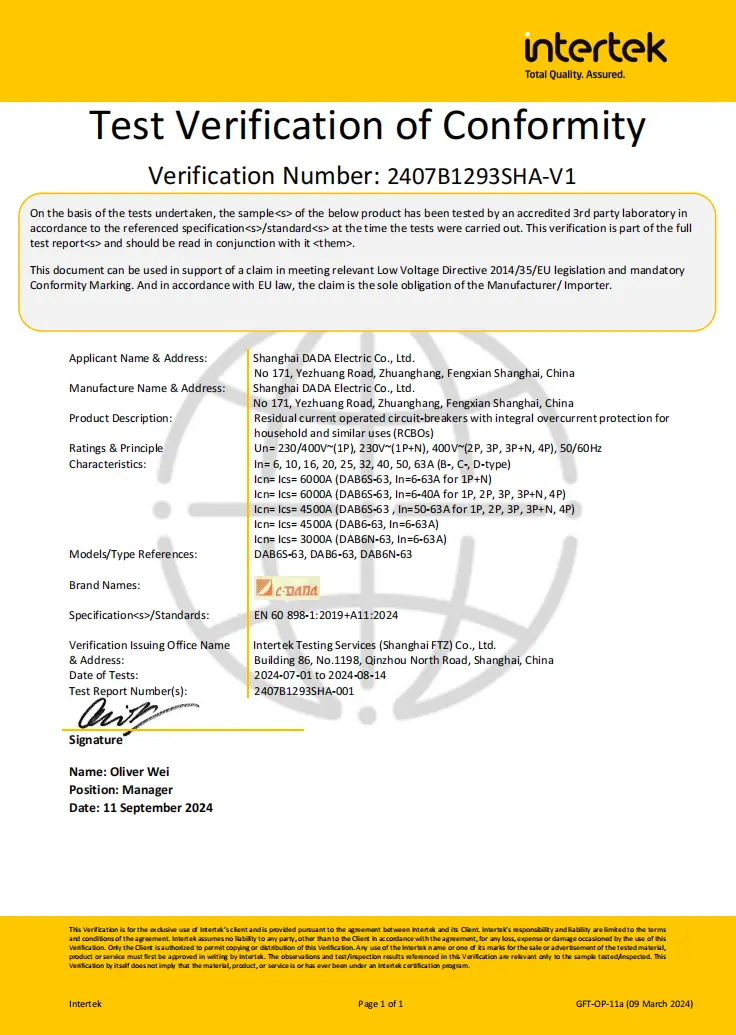

Certifications: CE, CB

Key Features:

★ Notched terminal clamps → lower thermal loss, higher mechanical strength

★ Wider operating lever → better grip and contact area

★ short-circuit protection mechanisms

★ DIN rail mountable (standard 35mm)

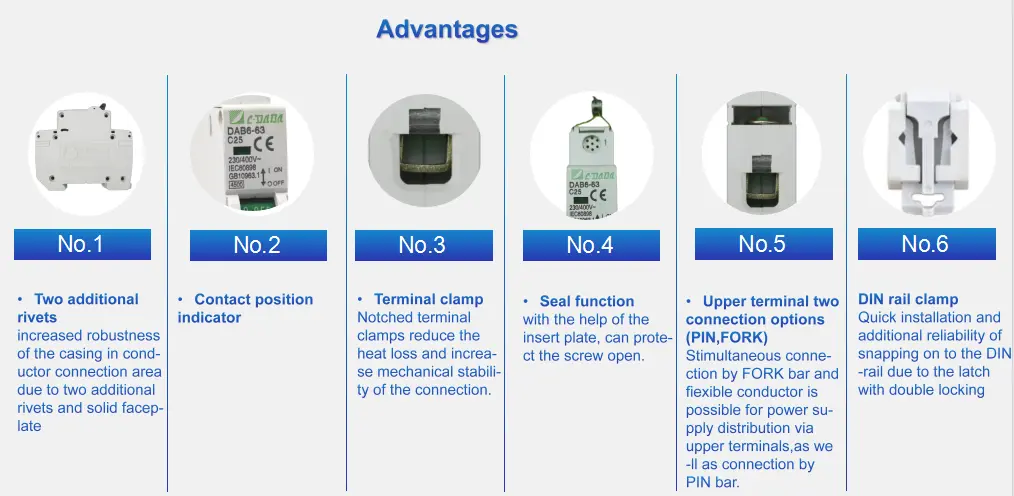

Advantages

Technical Data Sheet

Why Choose CDADA 6kA AC Miniature Circuit Breaker?

★ Tailored Protection for Every Load

Choose the right trip curve (B/C/D) to match your application—avoiding nuisance trips while ensuring safety.

	Test current	Tripping time	Applications
B Curve	3ln 5ln	0.1<t<45s(In ≦ 32A) 0.1<T<90s(In>32A)	Type B is only applicable to active loads: -Electric heater-Water heater-Electric furmace
C Curve	5In 10ln	0.1<t<15s(In ≦ 32A) 0.1<T<30s(In>32A)t<0.1s	Type C is suitable for ordinary loads: -Lamp -Power socket -Small power motor
D Curve	10ln 20In	0.1<t<4s(In ≦ 32A) 0.1<T<8s(ln>32A) t<0.1s	Control and protect circuits with instantaneous surge current (large motors)

★ Engineered for Reliability in Extreme Climates

Operates flawlessly from Arctic cold (–40°C) to tropical heat (+50°C)—ideal for global projects.

★ Lower Energy Loss, Higher Safety

Patented notched terminal clamps increase contact pressure, reducing resistance, heat generation, and fire risk.

★ User-Friendly Design

The wider lever improves manual operation—critical during emergencies or frequent switching.

★ Trusted Global Compliance

CE and CB certifications ensure acceptance in Europe, Middle East, Africa, and Asia—backed by Shanghai-based quality control.

★ Perfect for Residential & Light Commercial Use Compact, cost-effective, and easy to install—ideal for apartments, offices, schools, and retail spaces.

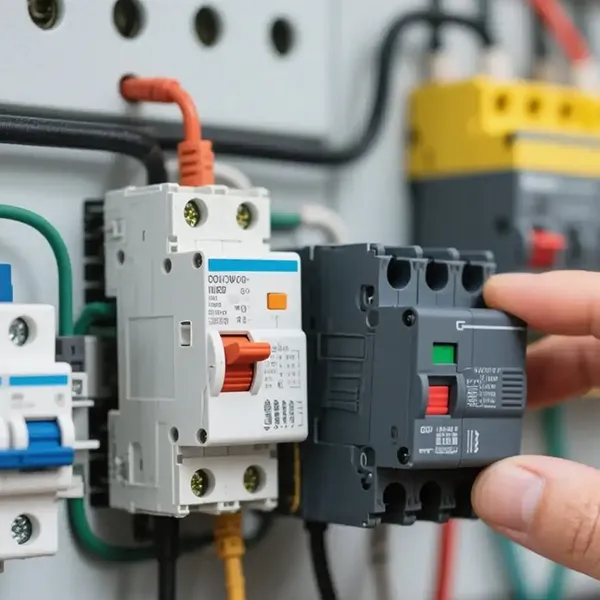

Typical Applications

Homes: Lighting circuits, socket outlets, kitchen appliances

Apartments & Condos: Floor-level distribution boards

Small Offices: HVAC, IT equipment, signage

Retail Stores: Display lighting, POS systems

Light Industry: Control panels for fans, small pumps, compressors

Frequently Asked Questions (FAQ)

Q1: What does “6kA” mean on an MCB?

A1: It’s the short-circuit breaking capacity—the maximum fault current (6,000 amps) the MCB can safely interrupt without damage. Suitable for most residential and light commercial applications.

Q2: Which trip curve should I choose for home use?

A2:

B curve: Best for lighting and general sockets

C curve: Recommended for air conditioners, washing machines, or small motors

D curve: Only needed for high inrush devices like water pumps or elevators

Q3: Can this MCB be used in outdoor panels?

A3: Yes—as long as the enclosure provides IP protection. The 6kA AC Miniature Circuit Breaker itself operates reliably from –40°C to +50°C, making it suitable for garages, sheds, or meter boxes in harsh climates.

Q4: Are the terminals compatible with standard cables?

A4: Yes—it accepts solid or stranded copper cables up to 25mm², and the notched clamp design ensures a secure, low-resistance connection.

Q5: Why choose CDADA over other 6kA MCB brands?

A5: CDADA offers:

● True CE & CB certification (not just self-declared)

● Wider operating temperature range than many competitors

● Enhanced terminal design for lower heat and longer life

● Clear B/C/D labeling for easy selection

● OEM-friendly pricing with consistent quality from a certified Chinese manufacturer
