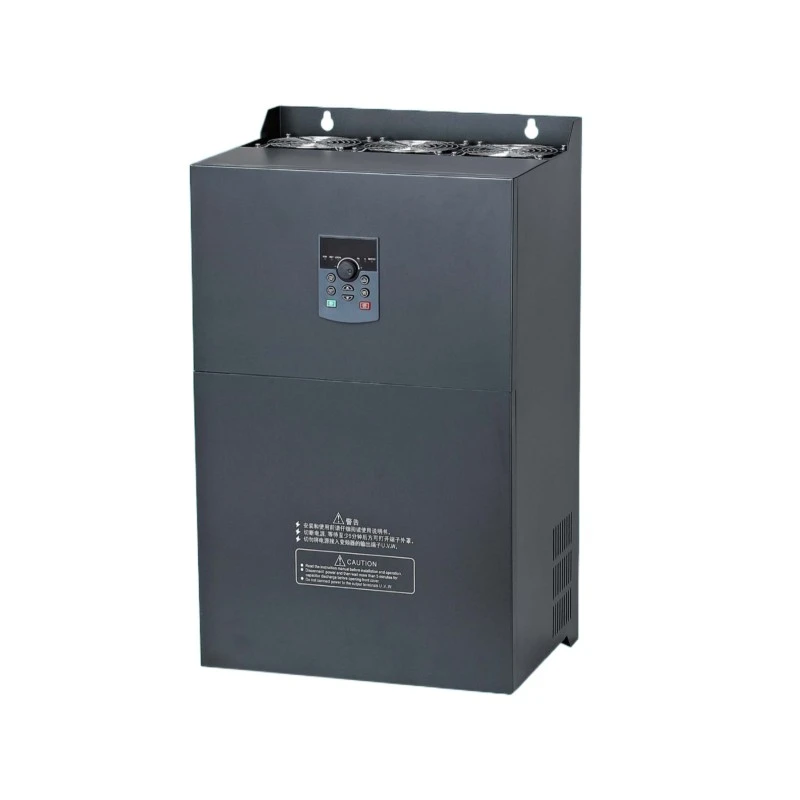

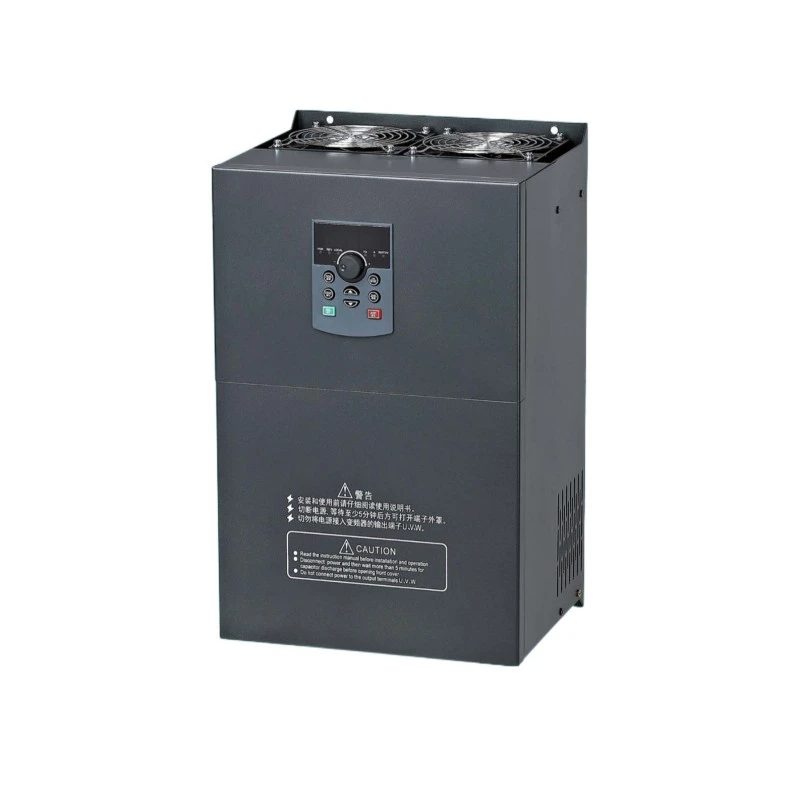

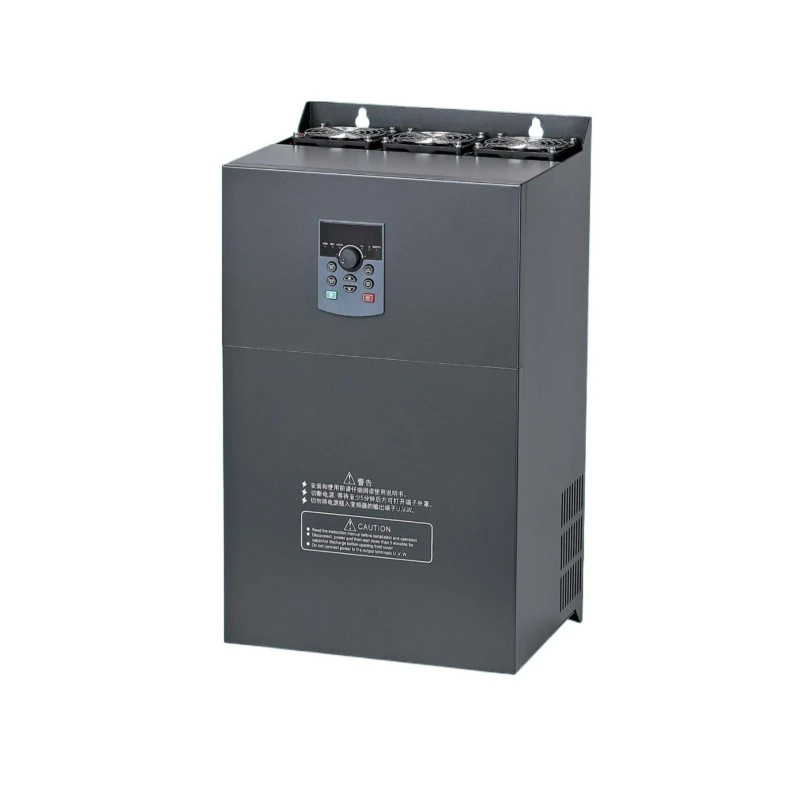

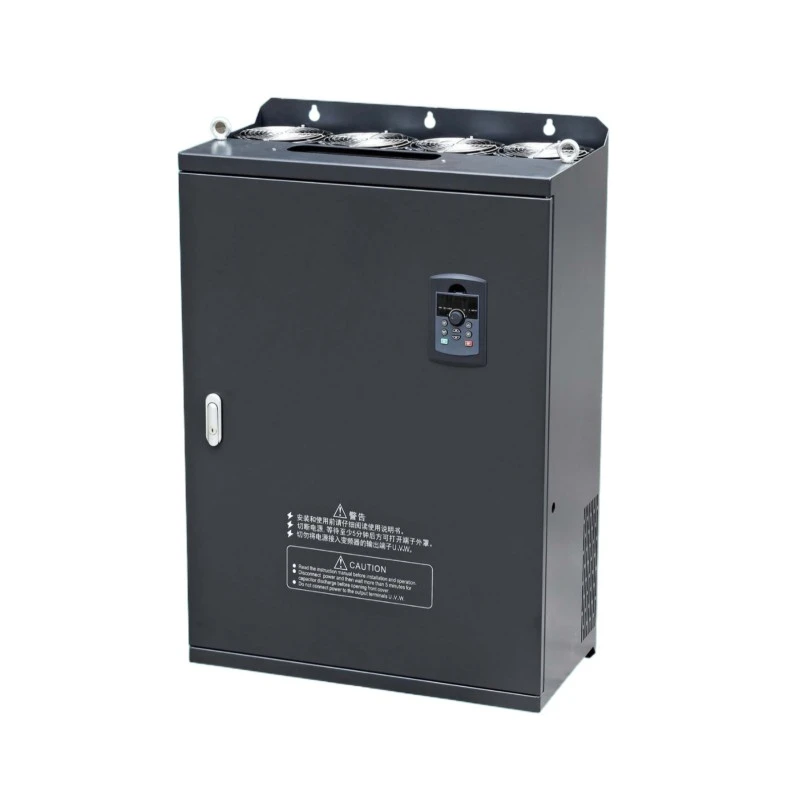

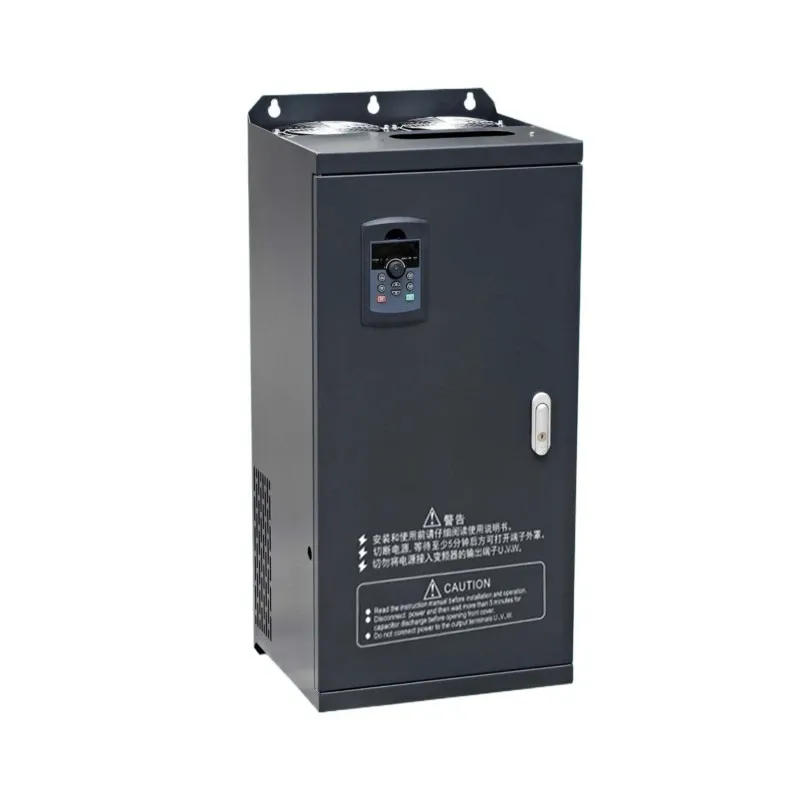

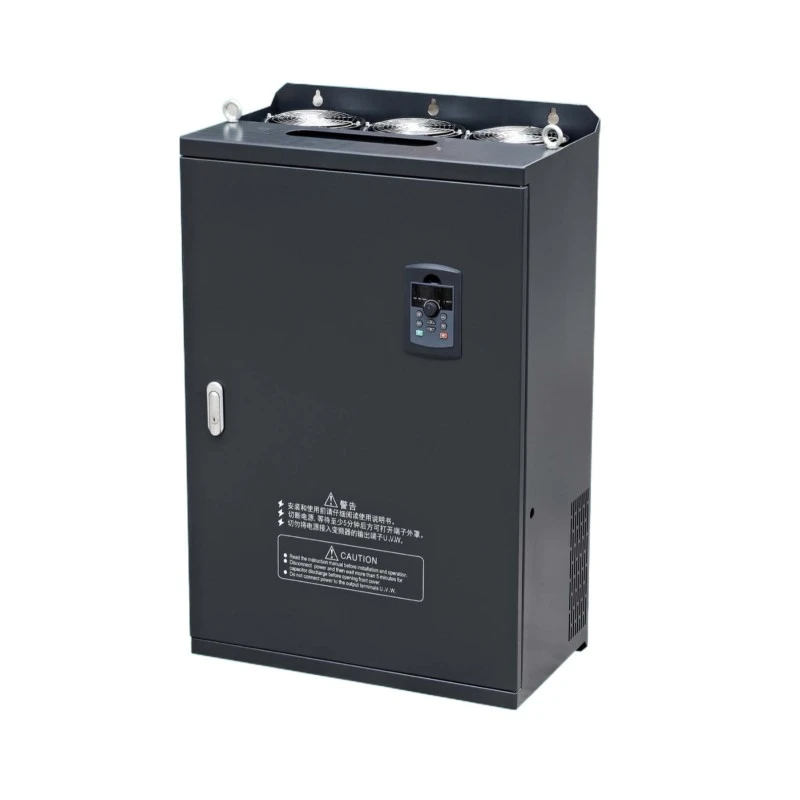

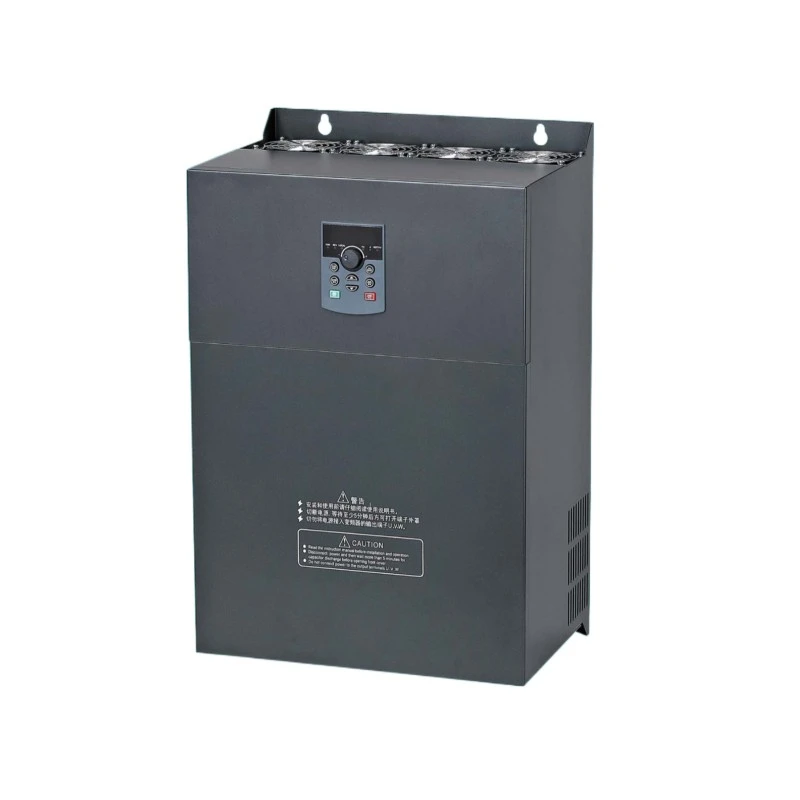

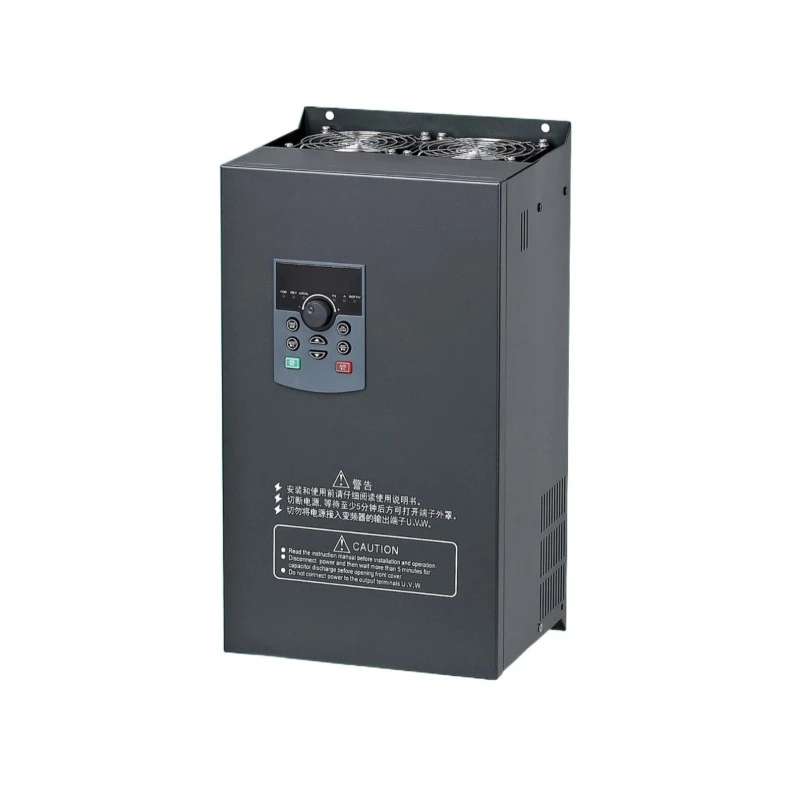

DC Inverter 0.75kW-630kW

Meet the CDADA Industrial DC Inverter 0.75kW-630kW—a high-performance motor drive platform for demanding industrial automation applications. Built on an advanced DSP (Digital Signal Processor) control architecture, this inverter delivers true vector control with or without encoder feedback, enabling precise speed, torque, and low-frequency operation unmatched by conventional V/F drives.

Designed for versatility, the CDADA inverter supports four control modes:

Vector Control without PG (SVC) – sensorless, ideal for most industrial loads

Vector Control with PG (VC) – closed-loop precision for cranes, elevators, or CNC spindles

V/F Control – simple, robust for fans and pumps

Torque Control – perfect for winding, unwinding, and tension systems

With auto-tuning of motor parameters, 1:1000 speed range (with encoder), and 180% starting torque at just 0.5Hz, it excels in applications requiring rapid response, smooth low-speed operation, and dynamic load handling—such as extruders, hoists, textile machines, compressors, and conveyor systems.

Equipped with RS485/Modbus, built-in PLC logic (16-step sequences), PID regulation, power-failure ride-through, and automatic carrier frequency adjustment (1–15kHz), the CDADA inverter ensures maximum energy efficiency, production continuity, and easy integration into modern smart factories.

Key Technical Features

Why Choose CDADA DC Inverter 0.75kW-630kW?

■ True Industrial Vector Performance

Not just a VFD—delivers servo-like control without servo cost, thanks to field-oriented vector algorithm.

■ Wide Power Coverage in One Platform

From small pumps (0.75kW) to large mills (630kW)—same firmware, same programming logic.

■ Smart Automation Ready

Built-in PLC + PID + Modbus reduces need for external controllers—lower system cost & footprint.

■ Robust for Harsh Environments

Designed for continuous 24/7 operation in dusty, hot, or electrically noisy plants.

■ Global Compatibility

Supports 380V/480V/690V AC input, with DC bus variants for battery or renewable integration.

■ User-Centric Design

Remote keypad, clear fault logs, and one-button auto-tuning simplify commissioning and maintenance.

Typical Applications

★ Material Handling: Conveyors, stackers, AGVs

★ Plastics & Rubber: Extruders, blow molding, calenders

★ Metal Processing: Rolling mills, coil lines, CNC spindles

★ Textiles: Spinning frames, looms, winders

★ Water & HVAC: High-efficiency pumps with PID pressure control

★ Mining & Cement: Crushers, fans, slurry pumps

Frequently Asked Questions (FAQ)

Q1: Is this a solar inverter or an industrial motor drive?

A1: This is an industrial DC-to-AC motor inverter (VFD)—it converts rectified DC bus or AC mains into controlled 3-phase AC to drive motors. It is not a solar/grid-tie inverter.

Q2: What does “DC inverter” mean here?

A2: The term refers to its ability to operate from a DC power source (e.g., common DC bus, battery, or rectified supply). Most models also accept standard AC input—the internal DC link powers the inverter stage.

Q3: Do I need an encoder for vector control?

A3: No—for most applications, SVC (sensorless vector) provides excellent performance. Use VC (with PG) only when you need ultra-high speed accuracy (<0.01%) or zero-speed full torque (e.g., elevators).

Q4: Can it replace my old ABB/Siemens/Yaskawa drive?

A4: Yes. CDADA inverters support standard control wiring, Modbus, and similar parameter structures. We provide cross-reference guides and parameter migration tools for seamless replacement.

Q5: Why choose CDADA over global brands?

A5: CDADA delivers:

● 90%+ performance of premium brands at 60–70% cost

● Faster delivery & local technical support in emerging markets

● Same core features: auto-tuning, torque control, Modbus, PLC

● Customization options (OEM branding, special firmware)

● Proven in 10,000+ industrial sites worldwide
