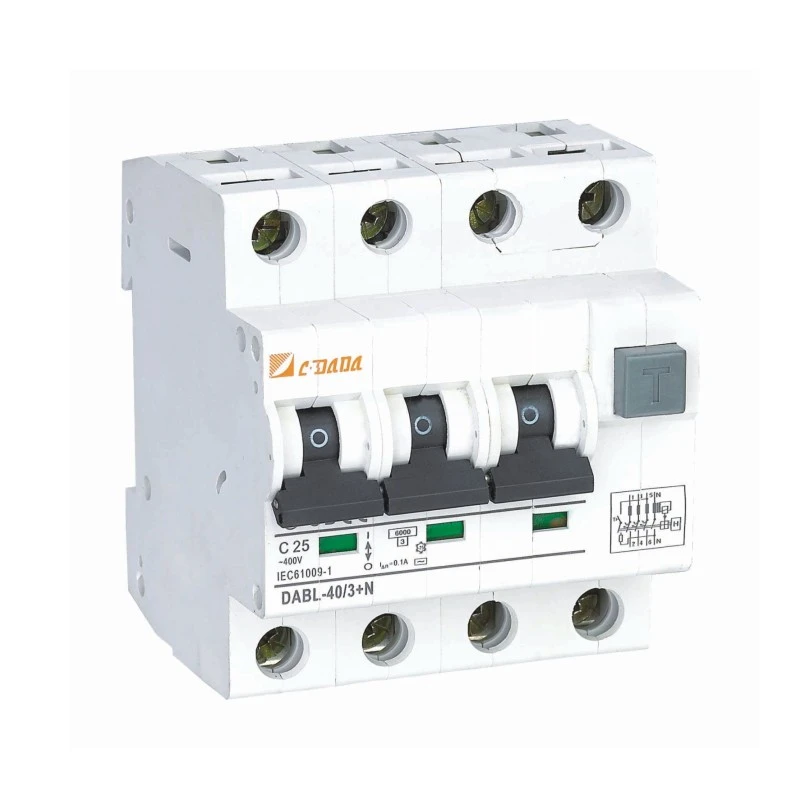

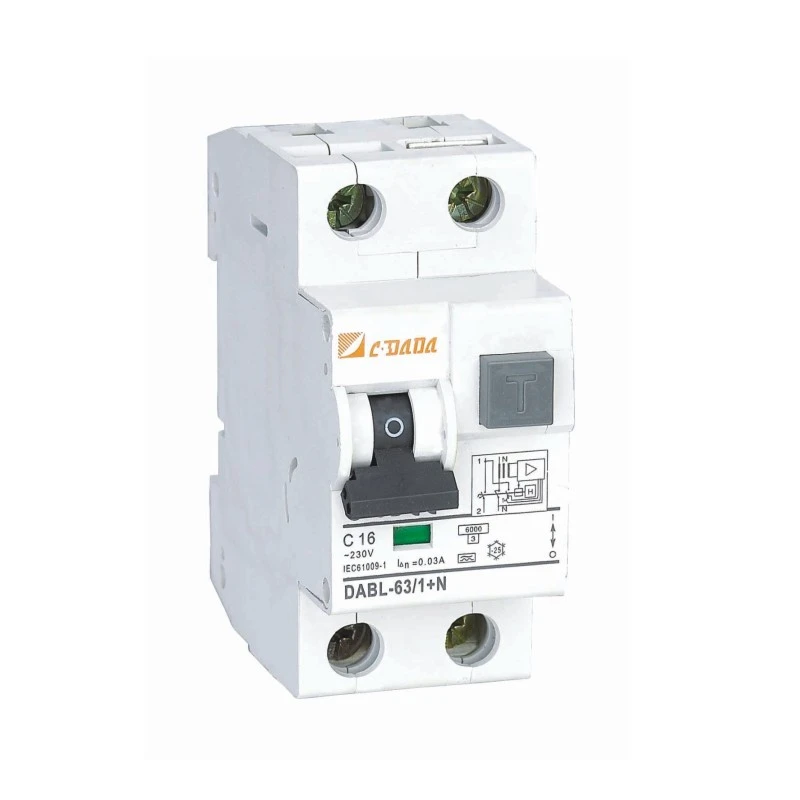

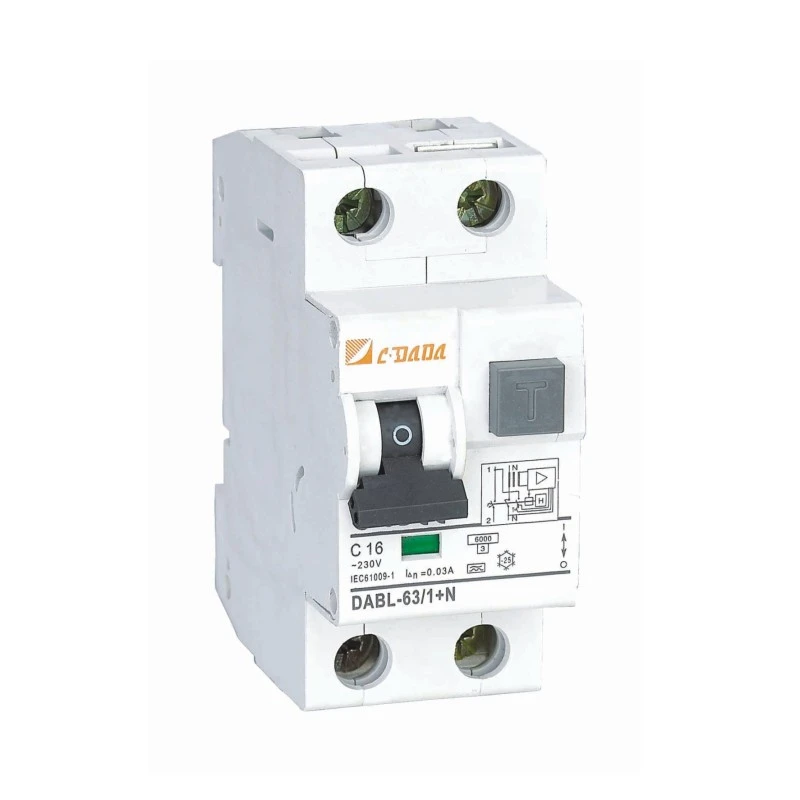

2P 4P Electronic Type RCBO

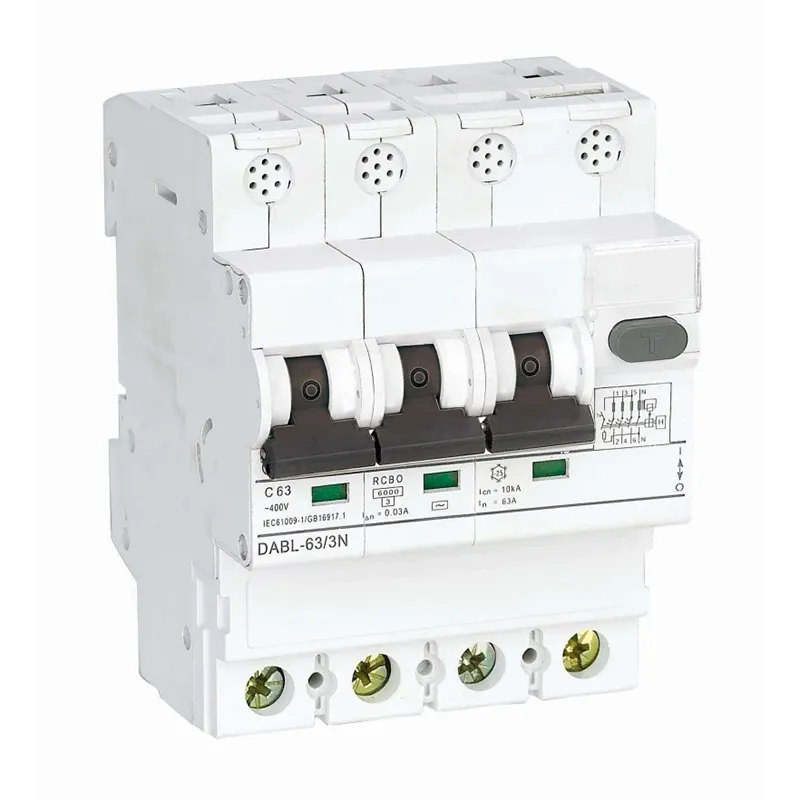

Maximize safety in modern electrical installations with the CDADA DABL-63 2P 4P Electronic Type RCBO—a compact, intelligent residual current circuit breaker with overcurrent protection engineered by Shanghai DADA Electric CO., LTD. Designed for 2P (1+N) and 4P (3+N) applications, this electronic RCBO delivers four-in-one protection:

Electric shock prevention (via 30mA residual current detection),

Overload protection,

Short-circuit interruption (6kA breaking capacity),

Surge suppression (integrated D-class varistor).

Ideal for outdoor sockets, garage lighting, basement circuits, and appliance feeders, the DABL-63 meets CE, CB, and RoHS standards and features an electronic differential module for ultra-sensitive fault detection. With a 2-module DIN width, independent contact position indicator, and –25°C to +40°C operating range, it’s built for reliability across diverse climates and residential/commercial settings.

Key Specifications

Model: DABL-63 Series

Type: Electronic RCBO (Residual Current Breaker with Overcurrent Protection)

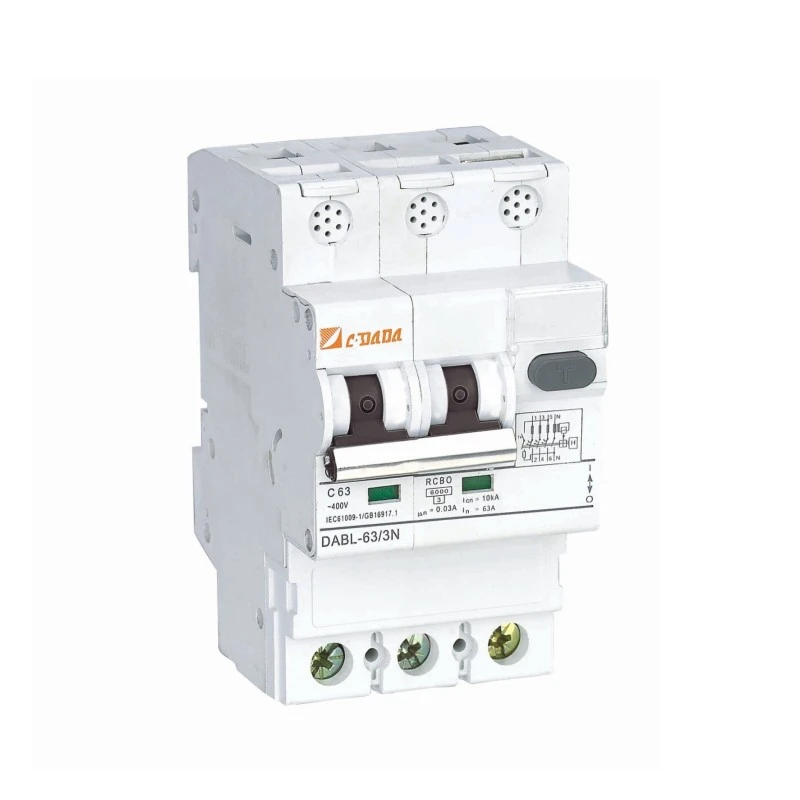

Poles: 2P (1+N) or 4P (3+N)

Rated Current (In): Typically 6–63A (based on DAB7-63 platform)

Residual Sensitivity (I△n): 30mA (standard for personal protection)

Breaking Capacity: 6kA,10kA

Protection Functions:

Residual current (leakage)

Overload (thermal)

Short circuit (electromagnetic)

Surge overvoltage (via built-in D-class varistor)

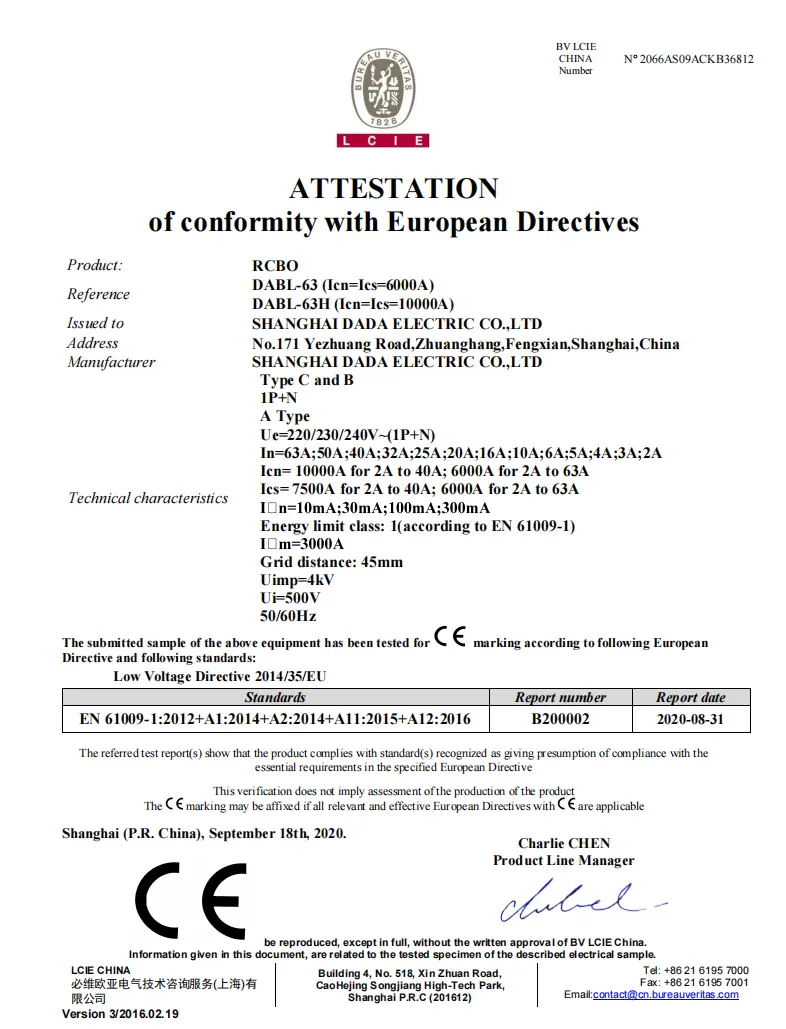

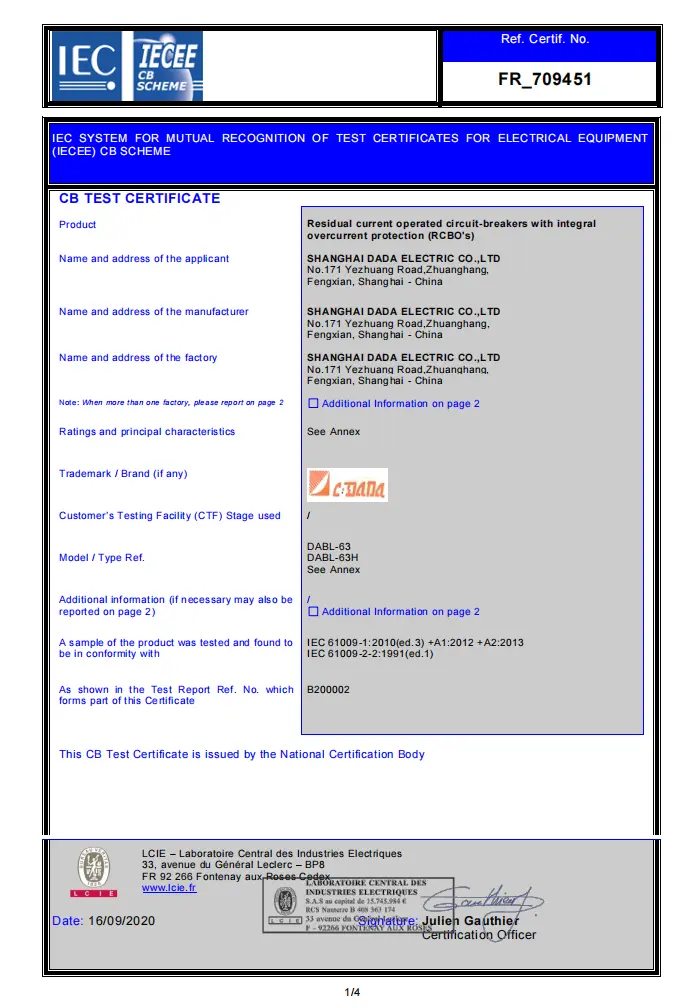

Certifications: CE, CB, RoHS

Operating Temperature: –25°C to +40°C

Mounting: 2-module width on 35mm DIN rail

Technical Data Sheet

Key Features:

★ Electronic differential module → high sensitivity & fast response

★ Independent contact indicator (shows true ON/OFF/trip status)

★ “TEST” button for monthly functionality check

★ Notched terminal clamps → lower heat, stronger grip

★ Cross-functional screws (+/–) → easier installation, no dropped parts

★ Silver-bearing contact alloy → longer life, lower resistance

Why Choose CDADA Electronic RCBO?

★ All-in-One Protection in 2 Modules

Replaces separate MCB + RCCB + surge protector—saving space, cost, and wiring complexity.

★ Enhanced Safety with Surge Suppression

Combined circuit with an electronic module of differential protection, D-class varistor and integrated circuit breaker of DAB7-63 series ensures 4 types of protection: from residual current (leakage current), short circuit; overload and surge overvoltage.

★ True Status Visibility

Unlike standard breakers, the independent contact indicator shows actual contact state—even if the handle is manually held ON.

★ Installer-Friendly Design

● Wide temperature range → suitable for unheated garages or hot attics

● Notched terminals → secure, low-resistance connections

● Dual-drive screws → works with flat or Phillips tools

★ Globally Certified

CE, CB, and RoHS approvals ensure compliance in Europe, Asia, Africa, and beyond—ideal for export panels.

★ Perfect for High-Risk Zones

Recommended for outdoor outlets, wet areas, garages, and basements where shock and fire risks are elevated.

★ With many years experience shipping to the Russia and European country in addition to all of South America, Europe, Asia, and Australia, CDADA has you covered!

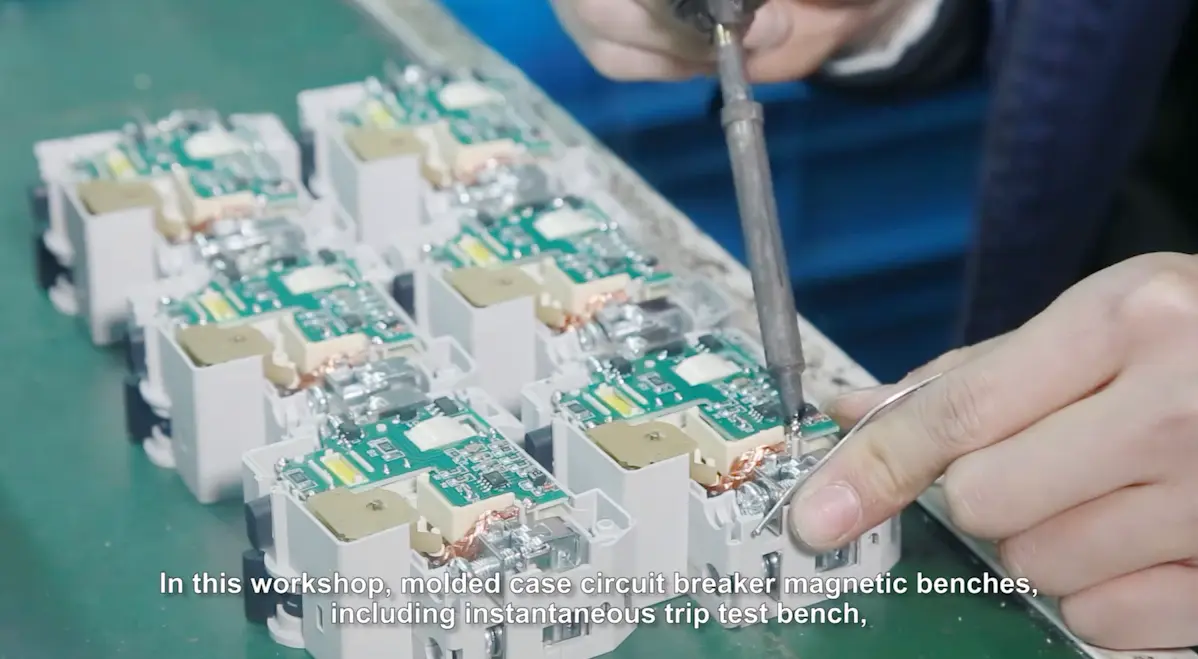

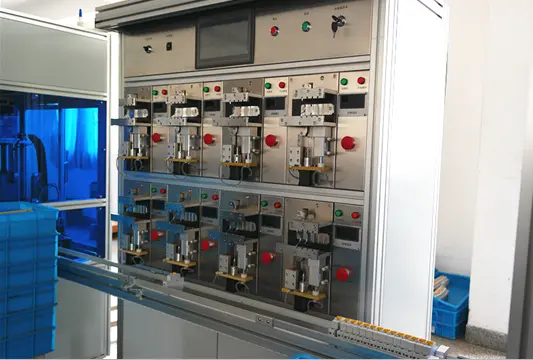

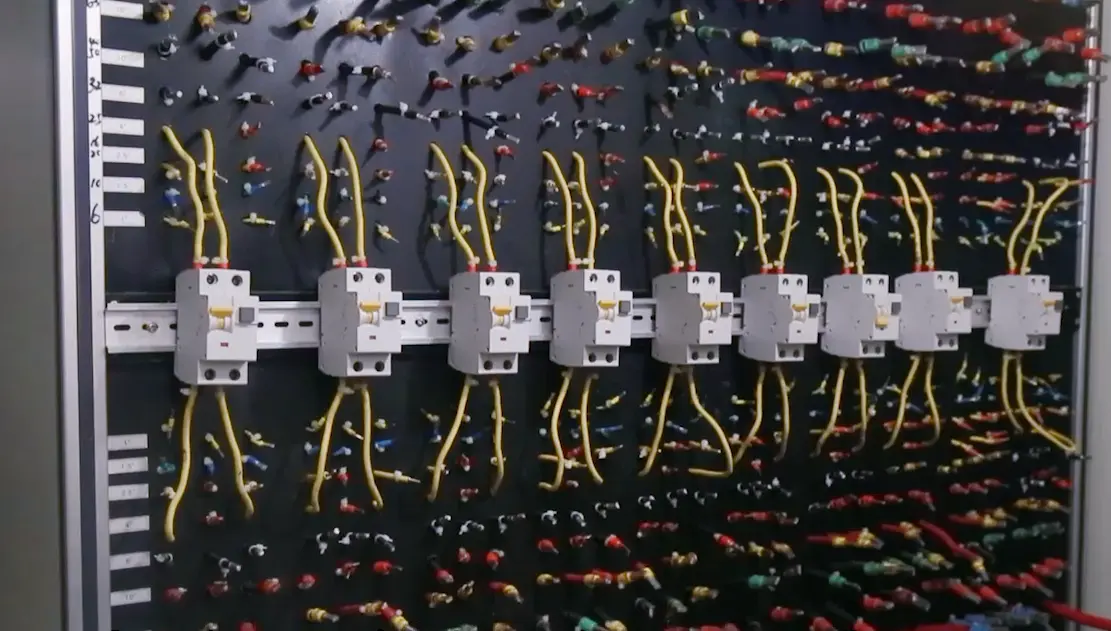

★ Since it is our policy to 100% inspect all products that leave our facility, we can guarantee with absolute certainty that the product is functionally 100% accurate before it leaves our facility.

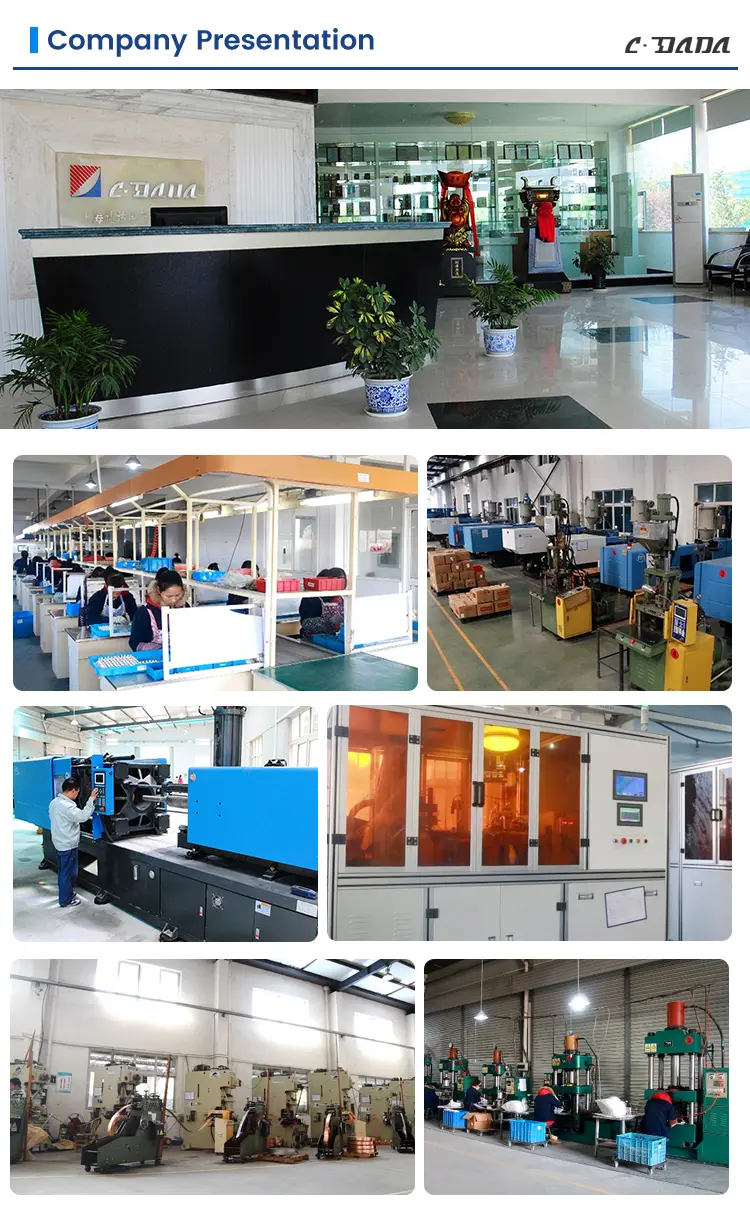

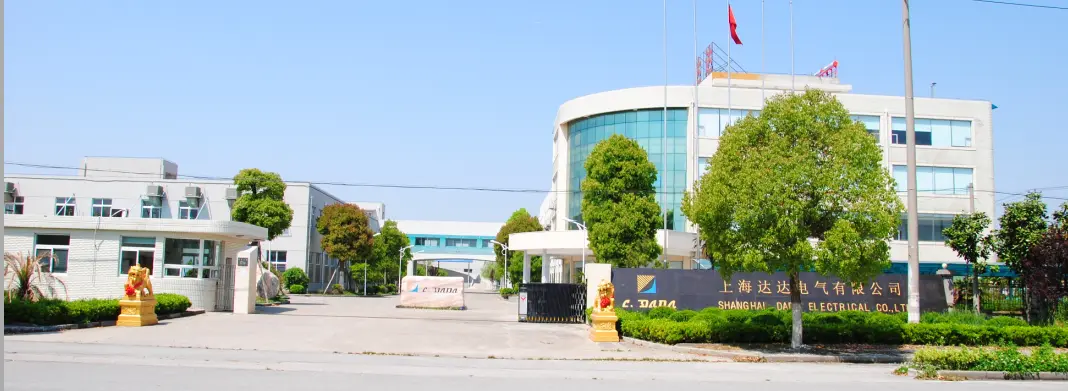

★ We are happy to have you visit us any time! This is the only way we can have complete control over production times and process throughput.

Typical Applications

Outdoor Sockets: For garden tools, EV chargers, holiday lights

Garage & Basement Lighting: Damp, cold environments

Appliance Circuits: Washing machines, dishwashers, refrigerators

Workshop Power: Where tools and moisture coexist

Residential Sub-Panels: Compact, multi-protection solution

Frequently Asked Questions (FAQ)

Q1: What’s the difference between an RCCB and an RCBO?

A1: An RCCB only detects residual (leakage) current—it does not protect against overload or short circuits. An RCBO (like DABL-63) combines RCCB + MCB in one device—offering leakage + overload + short-circuit protection.

Q2: Does this RCBO really protect against surges?

A2: Yes! It includes a built-in D-class varistor that suppresses transient overvoltages (e.g., from lightning or switching surges)—a rare feature in standard RCBOs.

Q3: Why choose an electronic RCBO over an electromagnetic one? A3:

● Electronic RCBOs offer higher sensitivity, smaller size, and can integrate extra functions (like surge protection).

● They require line voltage to operate—so not ideal if neutral is unreliable.

● Electromagnetic types work at 0V but are larger and lack smart features.
→ For stable residential grids, electronic RCBOs like DABL-63 are optimal.

Q4: Is 30mA sufficient for personal protection?

A4: Yes. 30mA is the international standard (IEC) threshold for life-saving shock protection in residential circuits.

Q5: Why choose CDADA for electronic RCBO?

A5: CDADA stands out because:

● True 4-in-1 protection (leakage + overload + short circuit)

● Compact 2-module design saves panel space

● Independent contact indicator ensures accurate status

● Global certifications (CE/CB/RoHS)

● OEM-ready: consistent quality, English support, bulk pricing
