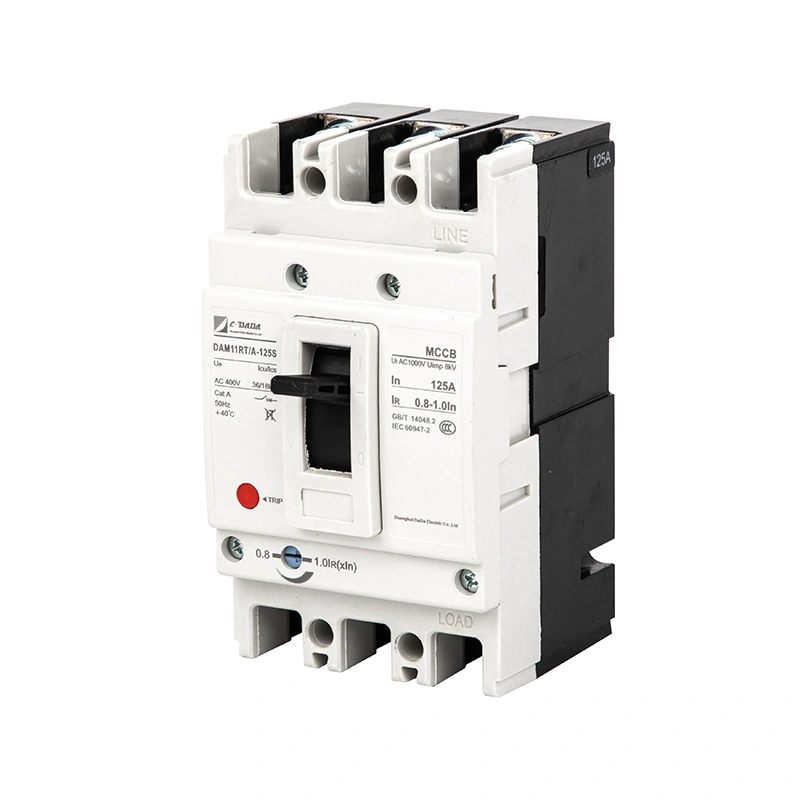

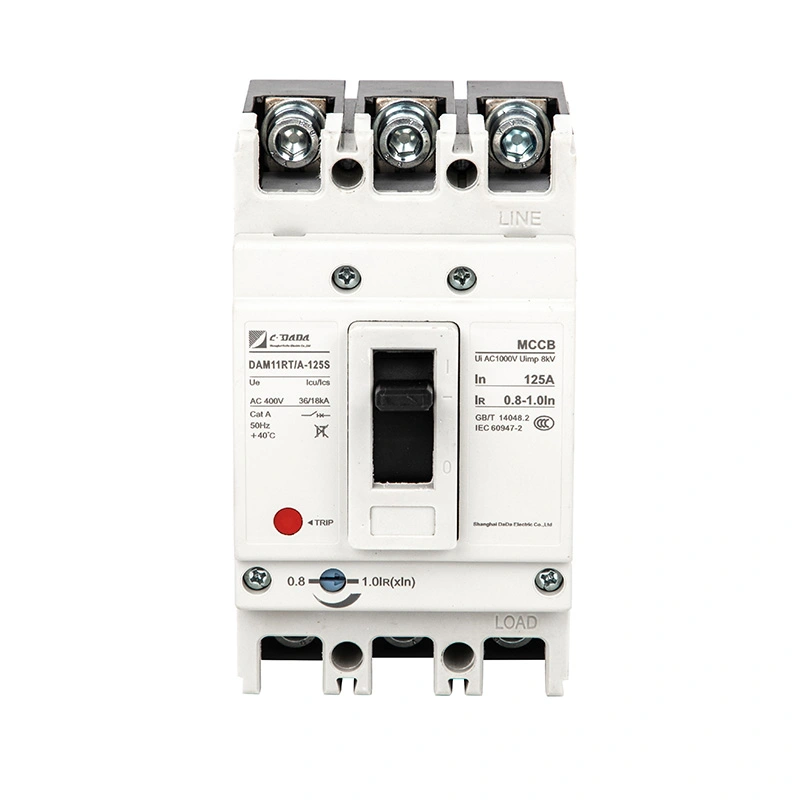

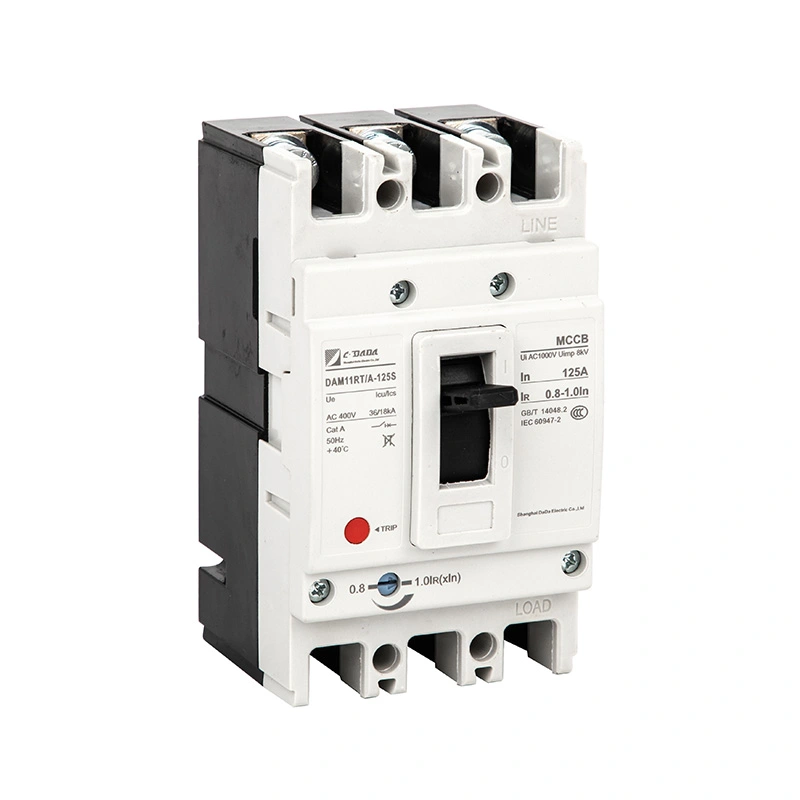

125A Adjustable Moulded Case Circuit Breaker

CDADA DAM11 125A Adjustable Moulded Case Circuit Breaker is an upgraded high-performance moulded case circuit breaker independently developed by Shanghai DADA Electric. With adjustable tripping parameters, 1000V insulation voltage, 690V working voltage, and 125A rated current, it provides full overload, short-circuit, and undervoltage protection for AC distribution systems.

Adopting current-limiting technology, patented contact repulsion device, and modular design, it is widely used in power distribution, motor protection, and industrial electrical systems, and is the first choice for global buyers, distributors and OEM customers.

Product Functions

● Overload long-delay protection

● Short-circuit short-delay & instantaneous protection

● Undervoltage & shunt tripping protection

● Adjustable current & time parameters

● Motor infrequent startup & protection

● Circuit isolation & safe control

● Modbus communication & remote monitoring (intelligent type)

Key Product Advantages

★ Adjustable tripping: IR/Isd/Ii freely adjustable, flexible for various loads

★ Current-limiting technology: U-shaped contact pre-breaking, suppress short-circuit current

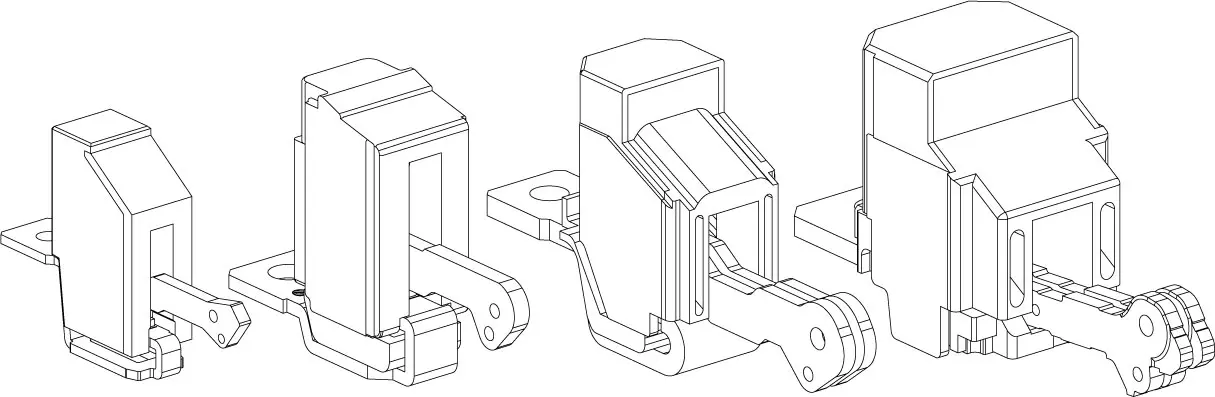

★ Patented contact repulsion device: enhance breaking capacity & service life

★ Miniaturized frame: small size, high breaking, short flashover

★ Modular accessories: uniform size, free combination, easy installation

★ Unified design: same frame, same installation dimension for all series

★ Intelligent communication: built-in Modbus, no external module needed

★ Vertical/horizontal installation: top/bottom wiring, polarity-free for DC type

★ High reliability: anti-vibration, anti-mould, suitable for harsh environment

★ Full certificates: comply with IEC60947-2, GB14048.2

Applications & Using Scenarios

CDADA 125A Adjustable Moulded Case Circuit Breaker is widely used in:

★ Industrial factories, workshops, power distribution cabinets

★ Commercial buildings, shopping malls, hotels, office buildings

★ Residential communities, villas, main incoming circuits

★ Motor, pump, fan, compressor, hoisting equipment

★ Power stations, substation, infrastructure projects

★ Marine, shipboard, vibration & earthquake environment

★ Data center, photovoltaic, DC power distribution system

Technical Parameters Table

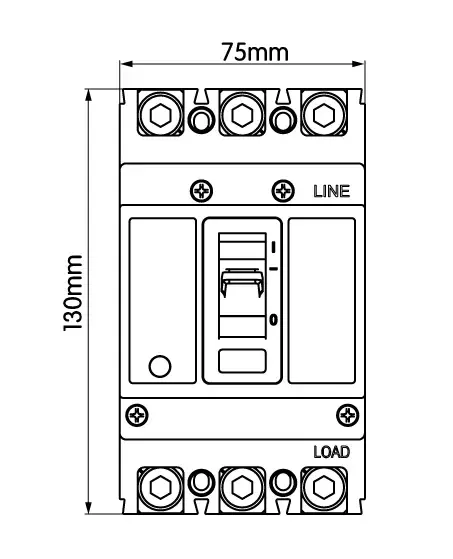

Outline Dimensions

★ Miniaturized frame design (125 frame)

★ Same dimension for all current ratings

★ Standard panel/back/plug-in wiring size

★ Suitable for conventional low-voltage distribution cabinets

★ Installation angle ≤22.5°

Standard Testing Items

1.13In non-tripping test

1.45In tripping test

Short-circuit breaking capacity test

Temperature rise test

Dielectric withstand voltage test

Mechanical & electrical life test

Adjustable parameter calibration test

Vibration & earthquake simulation test

High & low temperature operation test

Quality Control

Test Process

★ 1. Raw material incoming inspection & certification verification

★ 2. Automatic stamping, injection molding & precision assembly

★ 3. 100% full tripping characteristic & adjustable test

★ 4. Short-circuit breaking & temperature rise test

★ 5. Insulation & voltage withstand test

★ 6. Mechanical life & endurance test

★ 7. Appearance, dimension & logo inspection

★ 8. Finished product aging & final shipment inspection

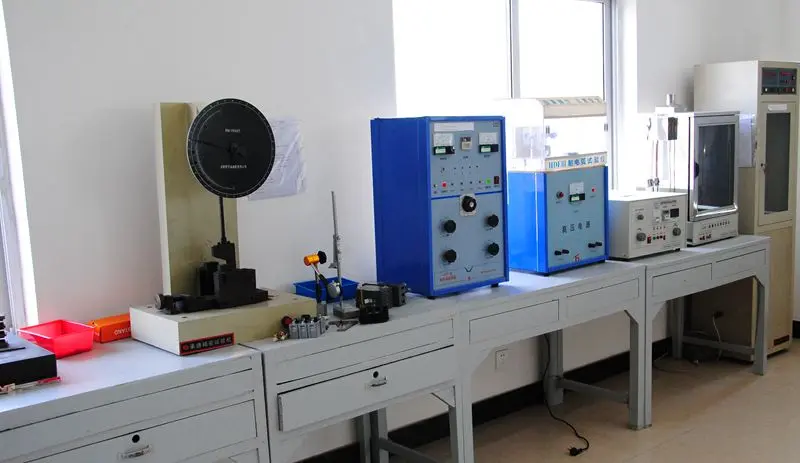

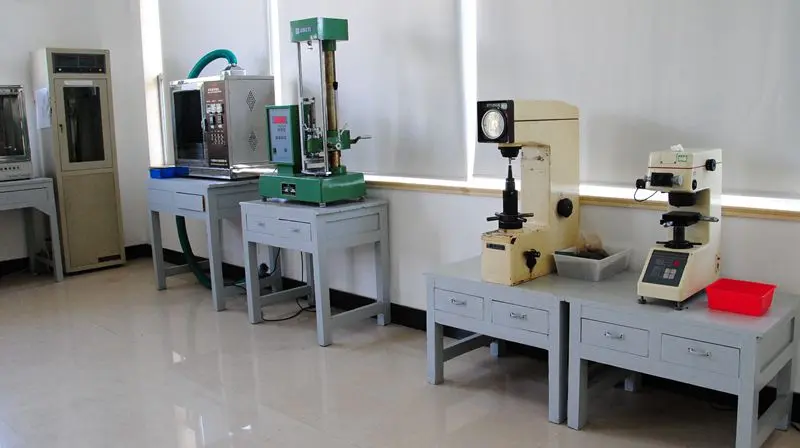

Testing Equipment

★ Automatic MCCB calibration system

★ High-current short-circuit test platform

★ Temperature rise test chamber

★ Withstand voltage & insulation tester

★ Life-cycle testing machine

★ Vibration & earthquake simulation equipment

★ Adjustable parameter calibration instrument

Certifications

CE, CB, CCC, ISO9001, IEC60947-2, GB14048.2

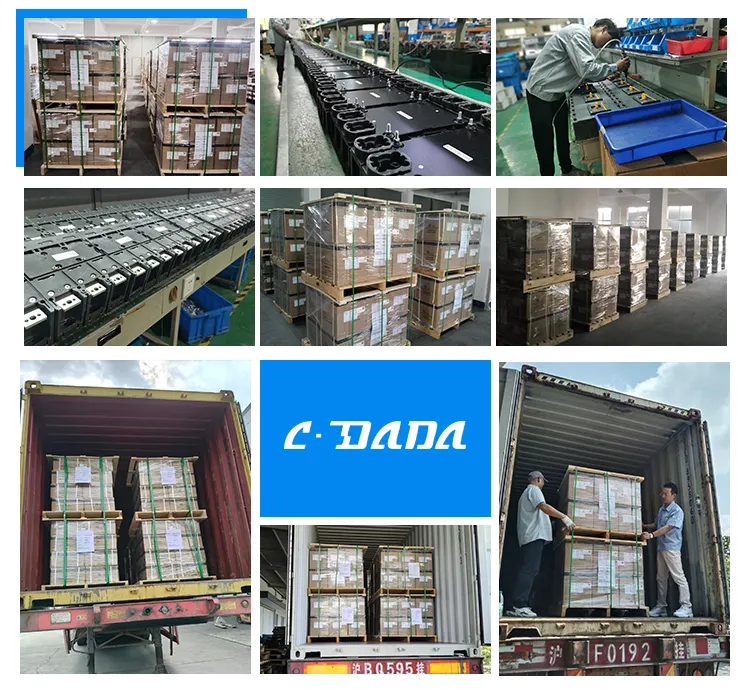

Packaging & Shipping

★ Standard export carton + shockproof inner lining

★ Independent packaging for each circuit breaker

★ Clear label: model, current, poles, accessories, certification

★ Suitable for sea, air, land transportation

★ Support OEM packaging & custom logo & color

Customer Applications & Success Cases

★ Industrial power distribution projects in Europe, Southeast Asia, Middle East

★ Motor control & protection for factories in Africa & South America

★ OEM cooperation with global electrical brands

★ Long-term bulk supply for international distributors

★ Marine & shipboard power system for shipping companies

★ Infrastructure & substation supporting for engineering contractors

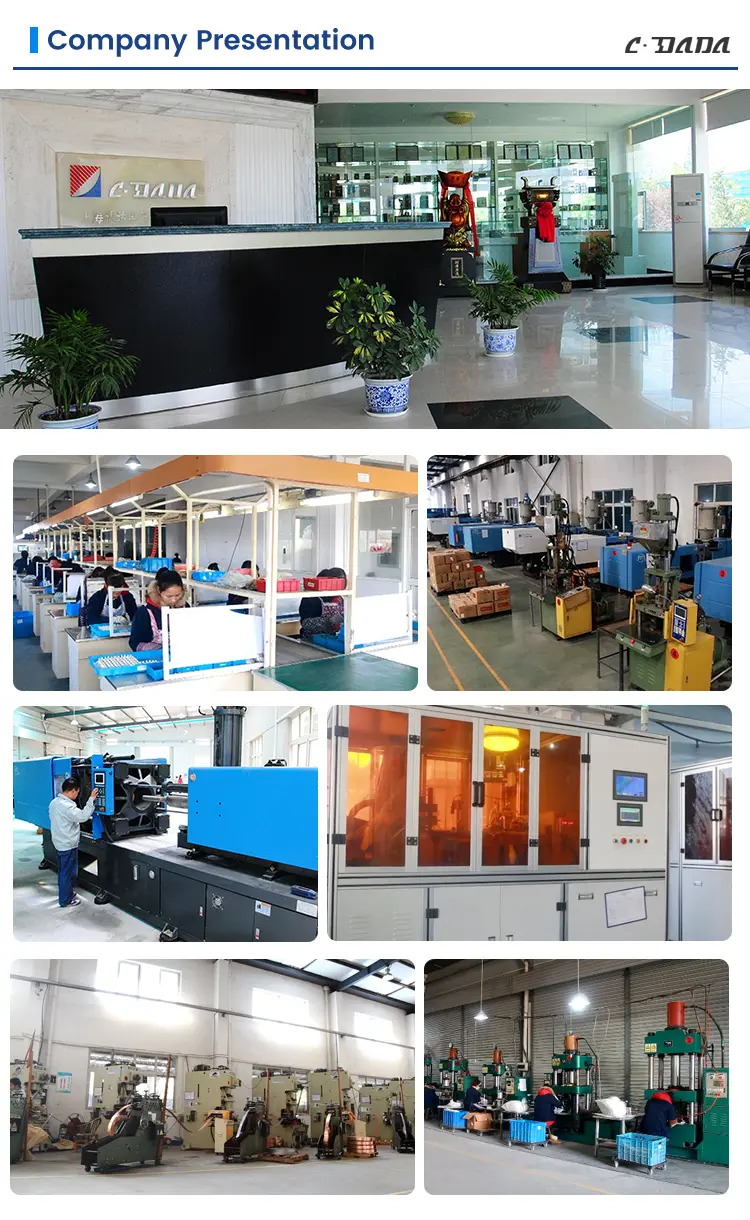

Factory Strength

★ 40+ years professional R&D and manufacturing experience

★ 50,000 ㎡ modern intelligent production base

★ Full-automatic stamping, injection, welding, assembly lines

★ 90% core components produced in-house

★ Professional R&D, production & QC team

★ Monthly capacity over 100,000 sets

★ Strong mold development & customization ability

★ Patented technology for contact & arc extinguishing system

Why Choose DADA CDADA?

★ Stable quality, 100% full inspection before shipment

★ Adjustable design, suitable for multiple working conditions

★ Modular accessories, easy maintenance & replacement

★ Fast delivery, large stock for standard models

★ Professional technical support & after-sales service

★ Accept OEM/ODM customization

★ Global certification, suitable for worldwide markets

★ Long-term cooperation with customers from 80+ countries

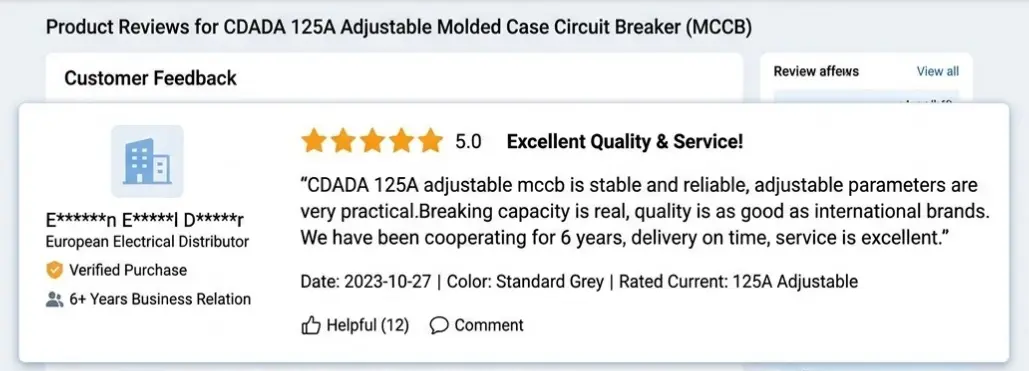

Customer Feedback

“CDADA 125A Adjustable Moulded Case Circuit Breaker is stable and reliable, adjustable parameters are very practical. Breaking capacity is real, quality is as good as international brands. We have been cooperating for 6 years, delivery on time, service is excellent.”— European Electrical Distributor
